12.8V 100Amp Lithium Battery

SKU: LBAT002 Category: Tags: , , ,

Introducing our dynamic 12.8V 100Amp lithium battery—a compact yet formidable powerhouse engineered to deliver unwavering, enduring power. Combining state-of-the-art technology with a robust build, this lithium battery guarantees steadfast performance across diverse applications, spanning electronics to renewable energy systems. Rely on its exceptional capacity and efficiency to maintain seamless operations, making it the ultimate selection for all your power requirements. Energize your endeavors with confidence, powered by our 12.8V 100Amp lithium battery.

12.8V 100Amp Lithium Battery

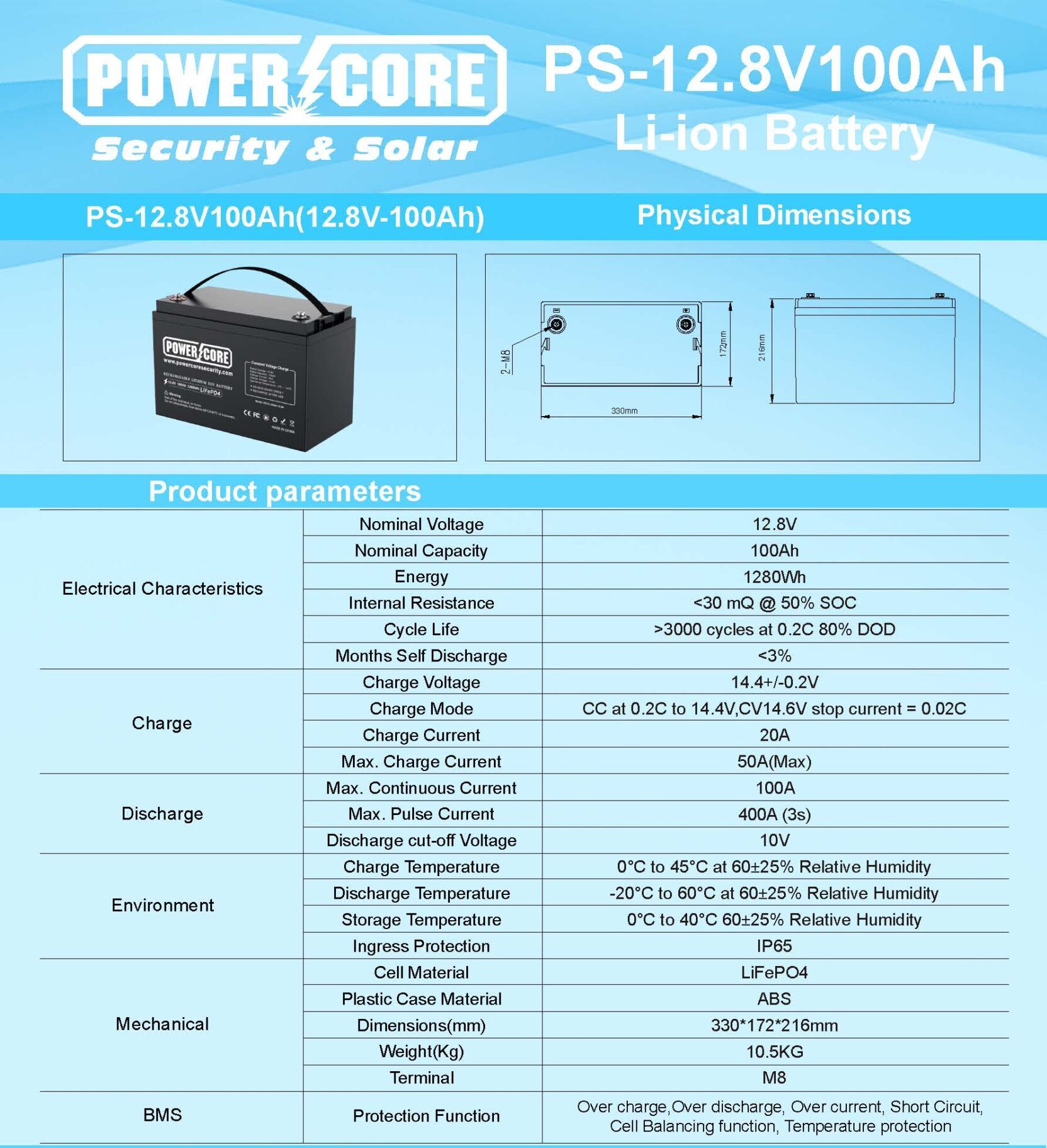

Product parameters: 12.8V 100Amp Lithium Battery

Electrical Characteristics:

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 100 Amp

  • Energy: 1280Wh

  • Internal Resistance: <30 mQ @ 50% SOC

  • Cycle Life: >3000 cycles at 0.2C 80% DOD

  • Months Self Discharge: <3%

Charge:

  • Charge Voltage: 14.4+/-0.2V

  • Charge Mode: CC at 0.2C to 14.4V,CV14.6V stop current = 0.02C

  • Charge Current: 20A

  • Max. Charge Current: 50A (Max)

Discharge:

  • Max. Continuous Current: 100A

  • Max. Pulse Current: 400A (3sec)

  • Discharge cut-off Voltage: 10V

Environment:

  • Charge Temperature: 0°C to 45°C at 60±25% Relative Humidity

  • Discharge Temperature: -20°C to 60°C at 60±25% Relative Humidity

  • Storage Temperature: 0°C to 40°C 60±25% Relative Humidity

  • Ingress Protection: IP56

Mechanical:

  • Cell Material: LiFePO4

  • Plastic Case Material: ABS

  • Dimensions(mm): 330*172*216mm

  • Weight(Kg): 10.5Kg

  • Terminal: M8

BMS:

  • Protection Function: Over charge,Over discharge, Over current, Short Circuit, Cell Balancing function, Temperature protection
