12.8V 18Amp Lithium Battery

SKU: LBAT004 Category: Tags: , , ,

Introducing our versatile 12.8V 18Amp lithium battery—an exceptional power solution thoughtfully designed for a multitude of applications. This lithium battery combines advanced technology with a robust build, ensuring reliable and enduring performance across various use cases, from electronics to renewable energy systems. Depend on its impressive capacity and efficiency to maintain seamless operations, making it the prime choice for fulfilling your diverse power needs. Empower your projects with confidence, fueled by our 12.8V 18Amp lithium battery.

12.8V 18Amp Lithium Battery

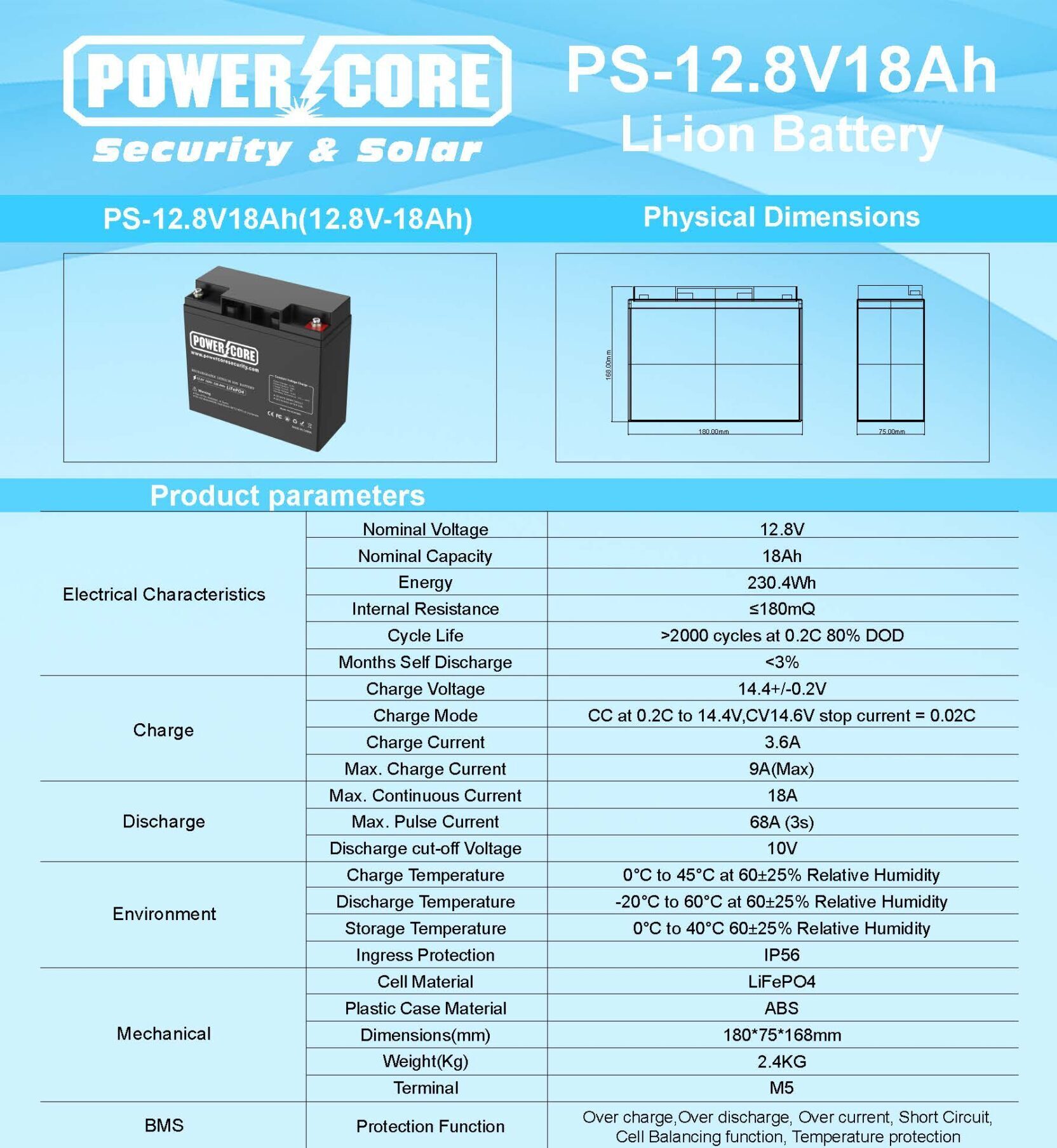

Product parameters: 12.8V 18Amp Lithium Battery

Electrical Characteristics:

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 18 Amp

  • Energy: 230.4Wh

  • Internal Resistance: ≤180mQ

  • Cycle Life: >2000 cycles at 0.2C 80% DOD

  • Months Self Discharge: <3%

Charge:

  • Charge Voltage: 14.4+/-0.2V

  • Charge Mode: CC at 0.2C to 14.4V,CV14.6V stop current = 0.02C

  • Charge Current: 3.6A

  • Max. Charge Current: 9A (Max)

Discharge:

  • Max. Continuous Current: 18A

  • Max. Pulse Current: 68A (3sec)

  • Discharge cut-off Voltage: 10V

Environment:

  • Charge Temperature: 0°C to 45°C at 60±25% Relative Humidity

  • Discharge Temperature: -20°C to 60°C at 60±25% Relative Humidity

  • Storage Temperature: 0°C to 40°C 60±25% Relative Humidity

  • Ingress Protection: IP56

Mechanical:

  • Cell Material: LiFePO4

  • Plastic Case Material: ABS

  • Dimensions(mm): 180*75*168mm

  • Weight(Kg): 2.4Kg

  • Terminal: M5

BMS:

  • Protection Function: Over charge,Over discharge, Over current, Short Circuit, Cell Balancing function, Temperature protection
