12.8V 50Amp Lithium Battery

SKU: LBAT003 Category: Tags: , , ,

Introducing our dynamic 12.8V 50Amp lithium battery—a compact yet formidable powerhouse meticulously crafted to provide steadfast and enduring power. This lithium battery seamlessly blends cutting-edge technology with a robust design, assuring unwavering performance across a wide spectrum of applications, ranging from electronics to renewable energy systems. Count on its remarkable capacity and efficiency to uphold uninterrupted operations, making it the paramount choice for all your power needs. Empower your ventures with confidence, energized by our 12.8V 50Amp lithium battery.

12.8V 50Amp Lithium Battery

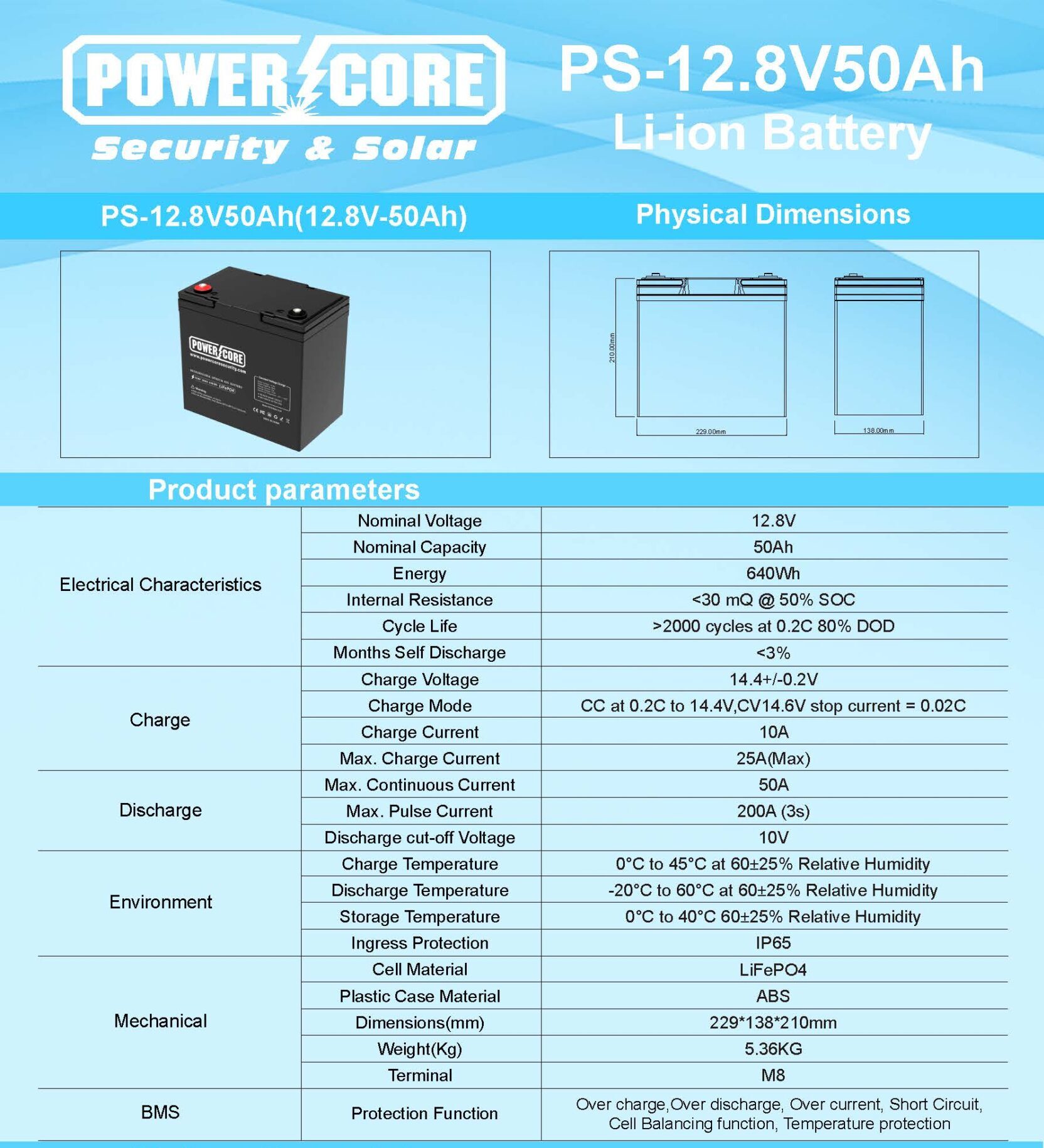

Product parameters: 12.8V 50Amp Lithium Battery

Electrical Characteristics:

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 50 Amp

  • Energy: 640Wh

  • Internal Resistance: <30 mQ @ 50% SOC

  • Cycle Life: >2000 cycles at 0.2C 80% DOD

  • Months Self Discharge: <3%

Charge:

  • Charge Voltage: 14.4+/-0.2V

  • Charge Mode: CC at 0.2C to 14.4V,CV14.6V stop current = 0.02C

  • Charge Current: 10A

  • Max. Charge Current: 25A (Max)

Discharge:

  • Max. Continuous Current: 50A

  • Max. Pulse Current: 200A (3sec)

  • Discharge cut-off Voltage: 10V

Environment:

  • Charge Temperature: 0°C to 45°C at 60±25% Relative Humidity

  • Discharge Temperature: -20°C to 60°C at 60±25% Relative Humidity

  • Storage Temperature: 0°C to 40°C 60±25% Relative Humidity

  • Ingress Protection: IP56

Mechanical:

  • Cell Material: LiFePO4

  • Plastic Case Material: ABS

  • Dimensions(mm): 229*138*210mm

  • Weight(Kg): 5.36Kg

  • Terminal: M8

BMS:

  • Protection Function: Over charge,Over discharge, Over current, Short Circuit, Cell Balancing function, Temperature protection
