12.8V 8Amp Lithium Battery

SKU: LBAT001 Category:

Introducing our high-performance 12.8V 8Amp lithium battery—a compact powerhouse designed to deliver dependable, long-lasting power. With cutting-edge technology and a robust design, this lithium battery ensures reliable performance in a variety of applications, from electronics to renewable energy systems. Trust in its exceptional capacity and efficiency to keep things running smoothly, making it the ideal choice for your power needs. Power up with confidence using our 12.8V 8Amp lithium battery.

12.8V 8Amp Lithium Battery

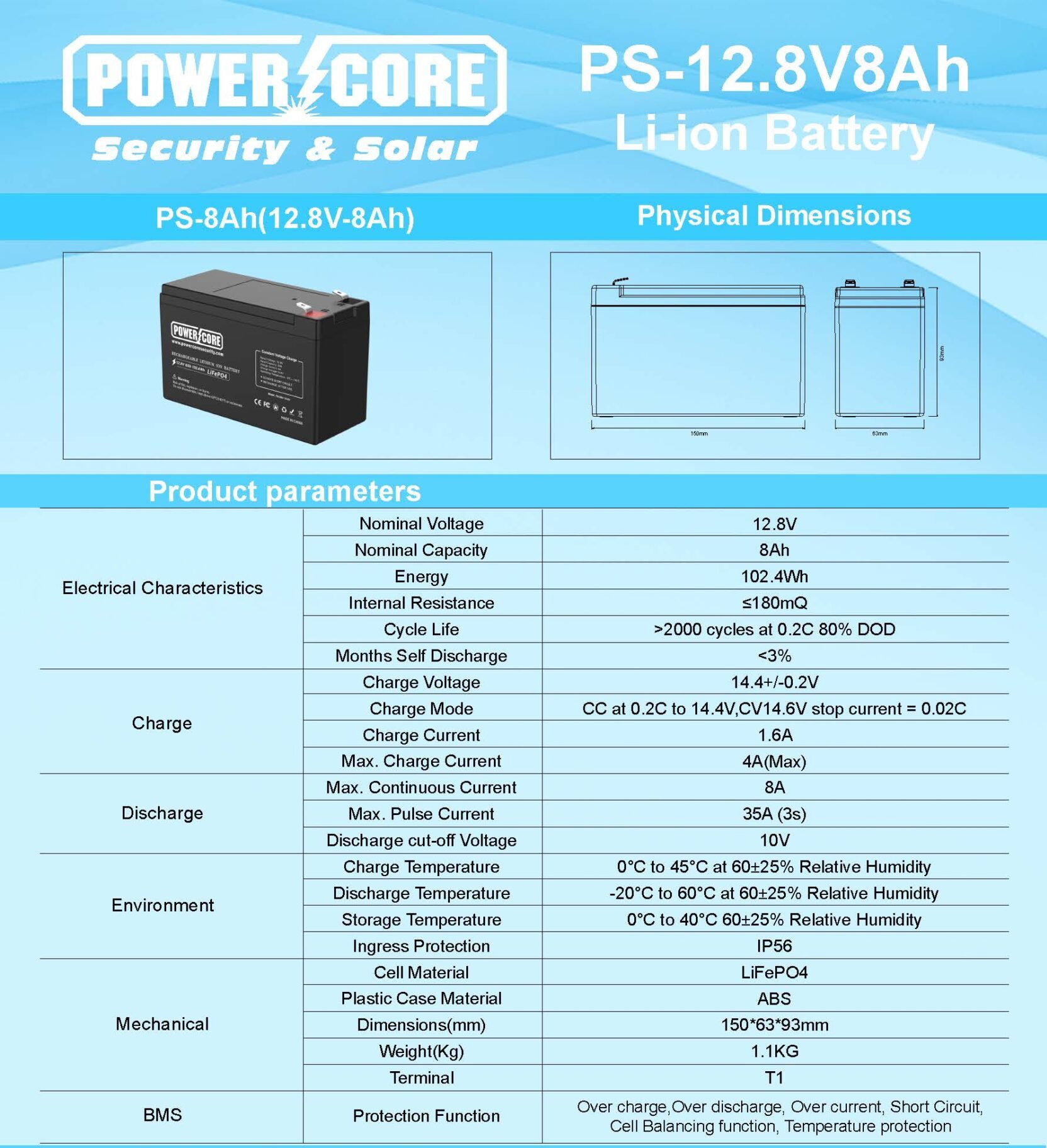

Product parameters

Electrical Characteristics:

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 8 Amp

  • Energy: 102.4Wh

  • Internal Resistance: ≤180mQ

  • Cycle Life: >2000 cycles at 0.2C 80% DOD

  • Months Self Discharge: <3%

Charge:

  • Charge Voltage: 14.4+/-0.2V

  • Charge Mode: CC at 0.2C to 14.4V,CV14.6V stop current = 0.02C

  • Charge Current: 1.6A

  • Max. Charge Current: 4A (Max)

Discharge:

  • Max. Continuous Current: 8A

  • Max. Pulse Current: 35A (3sec)

  • Discharge cut-off Voltage: 10V

Environment:

  • Charge Temperature: 0°C to 45°C at 60±25% Relative Humidity

  • Discharge Temperature: -20°C to 60°C at 60±25% Relative Humidity

  • Storage Temperature: 0°C to 40°C 60±25% Relative Humidity

  • Ingress Protection: IP56

Mechanical:

  • Cell Material: LiFePO4

  • Plastic Case Material: ABS

  • Dimensions(mm): 150*63*93mm

  • Weight(Kg): 1.1Kg

  • Terminal: T1

BMS:

  • Protection Function: Over charge,Over discharge, Over current, Short Circuit, Cell Balancing function, Temperature protection
