2MP HD Face Capture Bullet Network Camera

SKU: TD-9422A3-FC Categories: , , Tags: , , ,

Features – TD-9422A3-FC

  • Starlight
  • 1080P ( 1920 × 1080 ) @30fps
  • Support SMART H.265/H.264 coding
  • 10m white light view distance
  • 3D DNR, true WDR, HLC, BLC and ROI coding
  • Built-in micro SD card slot, up to 256GB
  • 1CH audio input
  • DC12V/PoE power supply
  • IP 67
  • P2P function optional
  • Support three streams
  • Support mobile surveillance by smart phones or tablet PCs with iOS and Android OS
  • Intelligent analytics: exception detection(scene change, video blur and video color cast detection), face detection and face capture

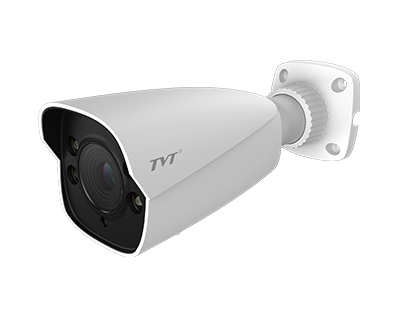

2MP HD Face Capture Bullet Network Camera
2MP HD Face Capture Bullet Network Camera - Image 2

MP HD Face Capture Bullet Network Camera – TD-9422A3-FC

Model
TD-9422A3-FC


Camera
Image Sensor 1 / 2.8″ CMOS
Image Size 1920 × 1080
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed IRIS
Min. Illumination 0.0028 lux @ F1.2, AGC ON; 0 lux with LED
0.005 lux @ F1.6, AGC ON; 0 lux with LED
Lens 8mm @ F1.6, horizontal FoV:40.6°; Vertical FoV:23.5°; Diagonal FoV:46° 12mm @F2.0, horizontal FoV:26.6°; Vertical FoV:15°; Diagonal FoV:30°
Focus Fixed
Lens Mount M12
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°


Video Compression Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 60Hz : 1080P/ 720P (1 ~ 30fps ); 50Hz : 1080P/ 720P (1 ~ 25fps )
Sub Stream 60Hz : 720P/D1/CIF/480×240 (1~30fps);
50HZ:720P/D1/CIF/480×240 (1~25fps)
Third Stream 60Hz : D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser
Audio Compression G711A/U
ROI Each ROI to be configured separately


Interfaces
Network RJ 45
Video Output No
Audio 1CH audio input
Storage Built-in micro SD card slot, up to 256GB
Reset Yes
Alarm No


Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP,
PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection; SD card full SD card error
Intelligent Analytics Face detection, face capture, exception detection(scene change, video blur and video color cast detection)
General Function Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch
PoE Yes (802.3af)
LED View Distance 10m soft light
Ingress Protection IP67


Face Detection
Face Detection Pupil distance of a facial image over 20 pixel can be detected
Face Capturing By precise detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots
Panorama Capturing Support panorama capturing and self-defined information overlay, like
device ID, time, etc.
Intelligent Light Compensation Built-in high efficient white light LEDs, time switch available


Others
Power Supply DC12V /PoE
Power Consumption < 10W
Operating Environment – 30 °C ~ 60 °C (-22°F~140°F)
Humidity: less than 95 % (non-condensing)

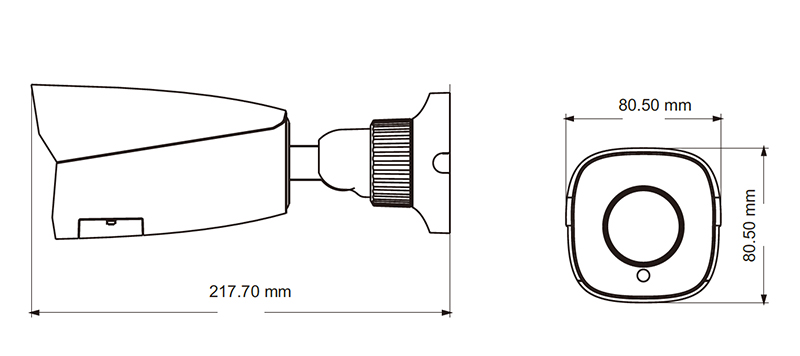

Dimensions ( mm ) 217.7 × 80.5 × 80.5
Weight ( net ) Approx. 0.641KG
Installation Wall mounting; ceiling mounting
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
