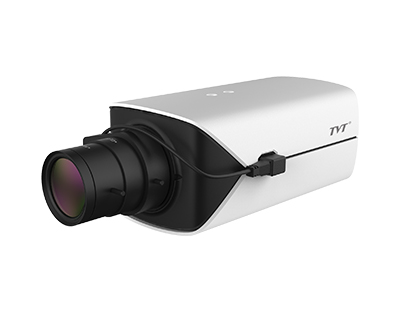

2MP HD Face Recognition Box Network Camera

TD-9322A3-FR

Introducing the TD-9322A3-FR model, a state-of-the-art surveillance camera designed for optimal performance. This camera features a 1/2.8″ CMOS image sensor with a resolution of 1920 × 1080 and an electronic shutter ranging from 1/25s to 1/100000s, ensuring precise image capture in various lighting conditions.

Equipped with DC-IRIS technology and a CS lens mount, the TD-9322A3-FR delivers superior image clarity with a recommended face capturing distance of 4~10m. The lens provides a versatile field of view with horizontal angles ranging from 44° to 17.6°.

Incorporating advanced features like Wide Dynamic Range (120dB), Backlight Compensation (BLC), High Light Compensation (HLC), and Defog, the camera guarantees optimal image quality. The inclusion of 3D Digital Noise Reduction (DNR) further enhances image clarity.

For seamless video compression, the TD-9322A3-FR supports various standards, including Smart H.265, H.265+, H.264, and MJPEG. The camera offers flexible resolution options, including 1080P (1920 × 1080) and 720P (1280 × 720), with adjustable frame rates for both 60Hz and 50Hz systems.

Facilitating easy customization, the camera allows adjustment of settings such as ROI, saturation, brightness, chroma, contrast, wide dynamic range, sharpening, and noise reduction. The audio capabilities include G711A/U compression and support for one audio input with a built-in microphone.

The TD-9322A3-FR provides multiple interfaces, including RJ45 for network connectivity and a built-in micro SD card slot for storage up to 256GB. It supports remote monitoring through web browsing and CMS remote control, with simultaneous monitoring for up to 10 users.

With intelligent analytics features such as face detection, face capture, face match, video blur detection, and scene change detection, this camera ensures a high level of security. Additional functions like watermarking, IP address filtering, video masking, and password protection enhance overall system integrity.

Featuring Power over Ethernet (PoE) capability, LED view distance of 10m, and IP67 Ingress Protection, the TD-9322A3-FR is a robust solution suitable for diverse environments. The camera’s face detection capabilities include pupil distance detection and support for a face picture database with up to 10,000 entries.

Operating in a wide temperature range of -30°C to 60°C, the TD-9322A3-FR is suitable for various environmental conditions. Its installation options include wall mounting and ceiling mounting, providing flexibility in deployment. Certified with CE and FCC, this camera complies with environmental protection directives, including EU RoHS, WEEE, and REACH.
