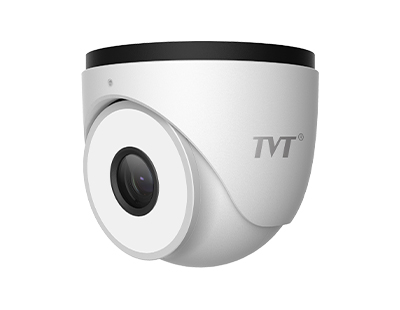

2MP HD Face Recognition Turret Network Camera

TD-9525A3-FR

Introducing the TD-9525A3-FR model, 2MP HD Face Recognition Turret Network Camera, a cutting-edge surveillance camera designed for optimal performance.

Imaging Technology

*CMOS Image Sensor:* Boasts a 1/2.8″ CMOS image sensor for high-quality visuals.
*Resolution:* Ensures crystal-clear imagery at 1920 × 1080.
*Electronic Shutter:* Ranging from 1/25s to 1/100000s for precise image capture.

Optics and Face Recognition

*DC-IRIS Technology:* Equipped with a DC-IRIS iris type for enhanced image clarity.
*Focal Length and Lens:* 7~22mm@F1.6 (motorized) for superior image clarity.
*Face Capturing Distance:* Recommended capturing distance of 4~10m for efficient facial recognition.
*Field of View:* Provides a versatile field of view with horizontal angles ranging from 44° to 17.6°.

Advanced Imaging Features

*Wide Dynamic Range (WDR):* Achieves 120dB for optimal image quality.
*Backlight Compensation (BLC) and High Light Compensation (HLC):* Ensures superior image clarity.
*Defog and 3D Digital Noise Reduction (DNR):* Enhance overall image clarity.

Video Compression and Resolution

*Video Compression Standards:* Supports Smart H.265, H.265+, H.264, and MJPEG.
*Resolution Options:* Offers 1080P (1920 × 1080) and 720P (1280 × 720) with adjustable frame rates.

Customization and Audio Capabilities

*Customization:* Allows adjustment of settings such as ROI, saturation, brightness, etc.
*Audio Compression:* G711A/U compression for clear audio.
*Microphone:* Supports one audio input with a built-in microphone.

Interfaces and Storage

*Network Connectivity:* Multiple interfaces, including RJ45 for network connectivity.
*Storage Options:* Features a built-in micro SD card slot for storage up to 256GB.

Remote Monitoring and Analytics

*Remote Monitoring:* Supports remote monitoring through web browsing and CMS remote control.
*Intelligent Analytics:* Features face detection, face capture, face match, and more.

Security Features

Security Enhancements: Functions like watermarking, IP address filtering, video masking, and password protection.

Power and Environmental Features

*Power over Ethernet (PoE):* Enables efficient power supply.
*LED View Distance:* Provides a clear view up to 10m.
*Ingress Protection:* IP67-rated for robust performance in various environments.

Face Detection Capabilities

*Face Detection:* Includes pupil distance detection and supports a face picture database with up to 10,000 entries.

Operating Environment and Installation

*Operating Temperature:* Operates in a wide range from -30°C to 60°C.
*Installation Options:* Flexible options, including wall mounting and ceiling mounting.

Certification and Compliance

*Certification:* Certified with CE and FCC.
*Environmental Compliance:* Complies with EU RoHS, WEEE, REACH, and other environmental protection directives.
