3.2A Power Supply Unit

SKU: SX017 Category: Tags: , , ,

The 3.2A Power Supply Unit: Engineered for reliability and efficiency, featuring intelligent charging and robust low-battery protection. This unit ensures dependable power delivery while safeguarding your devices. Experience peace of mind with the 3.2A Power Supply Unit.

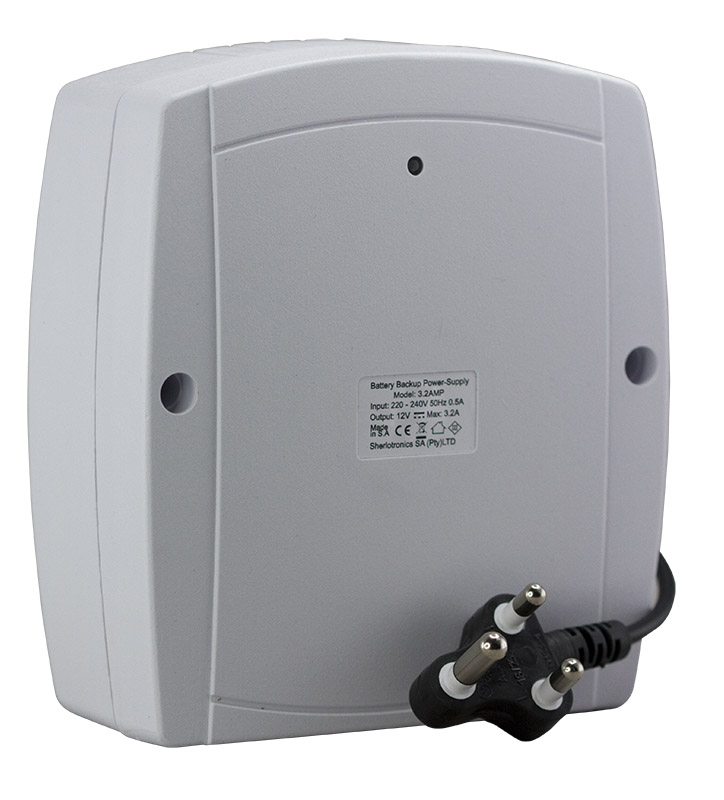

3.2A Power Supply Unit

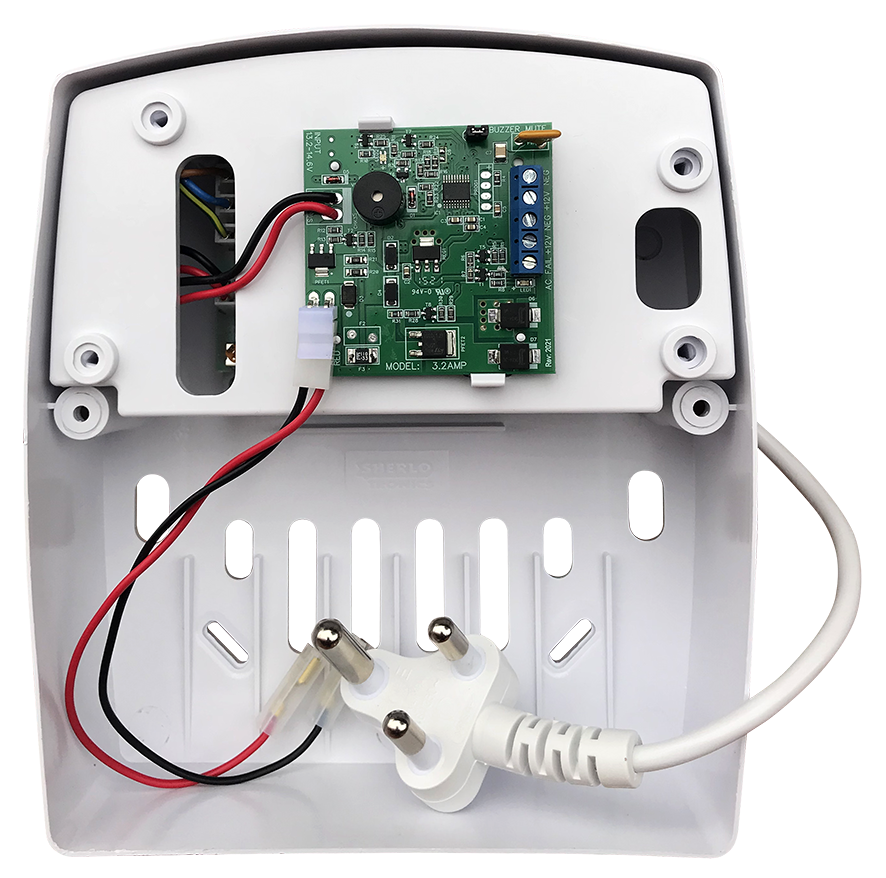

3.2A Power Supply Unit - Image 2

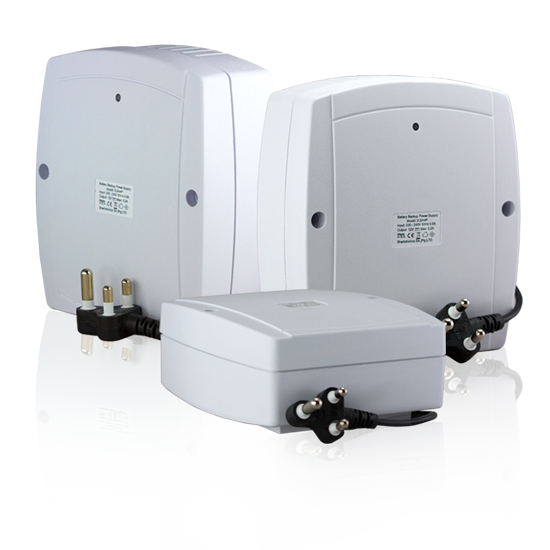

3.2A Power Supply Unit - Image 3
3.2A Power Supply Unit

APPLICATIONS

  • Alarm panel Battery backup
  • CCTV Battery backup
  • Backup power supply for door controller.
  • Magnetic lock for an Access Control solution

FEATURES

  • Microprocessor Controlled charging output.
  • Low battery switch off at 10V DC.
  • Buzzer tones on battery low and AC Fail.
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.

SPECIFICATIONS

  • Input Voltage Range: 110V ~ 230V AC 50Hz
  • Output Voltage: 13V ~ 14.4V Adjustable
  • Max Current output: 3.2A DC / 40Watts
  • Relay contact rating: 10A
  • AC Fail output rating: 140mA Positive switching
  • Operating temp: -3°C to 60°C
  • Dimensions (lxbxh): 200 x 180 x 87mm
  • Gross Weight: 0.895Kg
  • Warranty: 12 Months.
