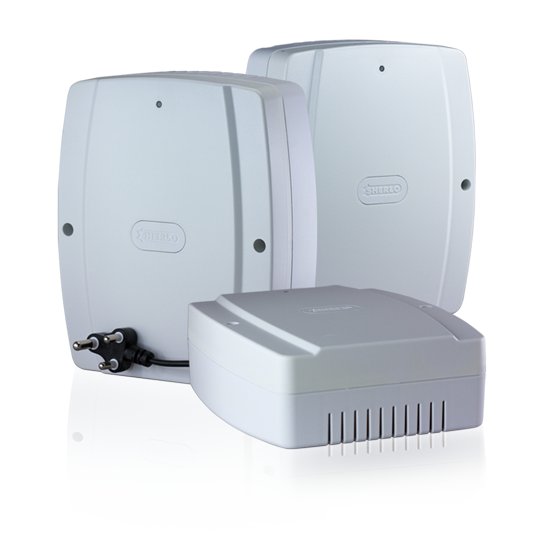

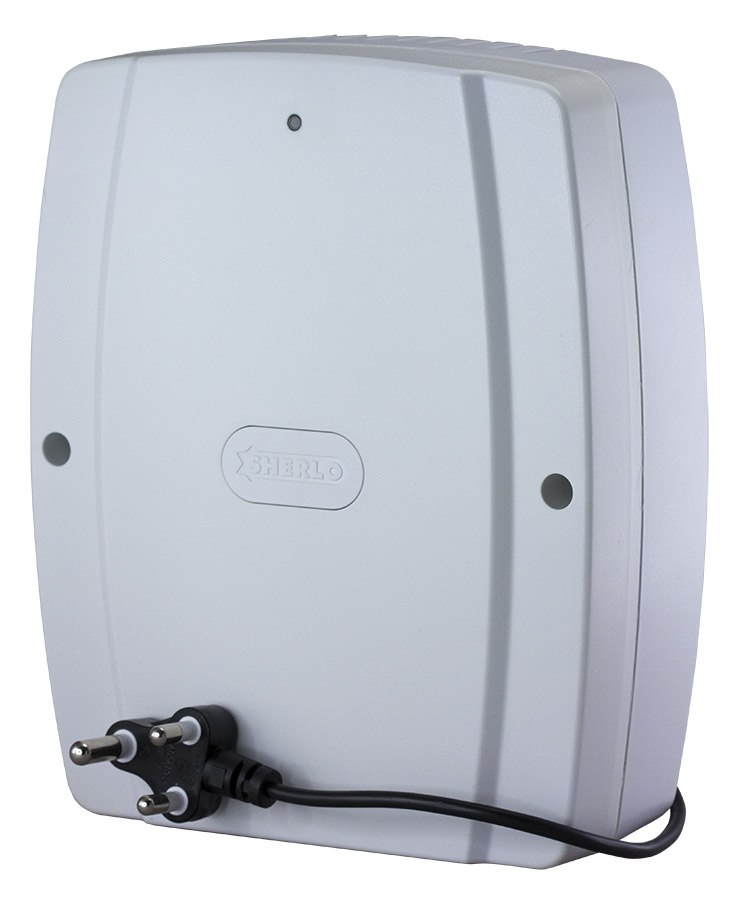

6.4A Power Supply Unit

SKU: SX018 Category: Tags: , , ,

The 6.4A Power Supply Unit: Engineered for exceptional power delivery, featuring intelligent charging and robust low-battery protection. This unit ensures reliable and efficient operation while safeguarding your devices. Elevate your power supply with the 6.4A Power Supply Unit.

6.4A Power Supply Unit
6.4A Power Supply Unit - Image 2
6.4A Power Supply Unit - Image 3

6.4A Power Supply Unit

APPLICATIONS

  • Alarm panel Battery backup
  • CCTV Battery backup
  • Backup power supply for door controller.
  • Magnetic lock for an Access Control solution

FEATURES

  • Microprocessor Controlled charging output.
  • Low battery switch off at 10V DC.
  • Buzzer tones on battery low and AC Fail.
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.

SPECIFICATIONS

  • Input Voltage Range: 110V ~ 230V AC 50Hz
  • Output Voltage: 13V ~ 14.4V Adjustable
  • Max Current output: 6.4A DC / 70Watts
  • Relay contact rating: 10A
  • AC Fail output rating: 140mA Positive switching
  • Operating temp: -3°C to 60°C
  • Dimensions (lxbxh): 275 x 225 x 97mm
  • Gross Weight: 1.13kg
  • Warranty: 12 Months
