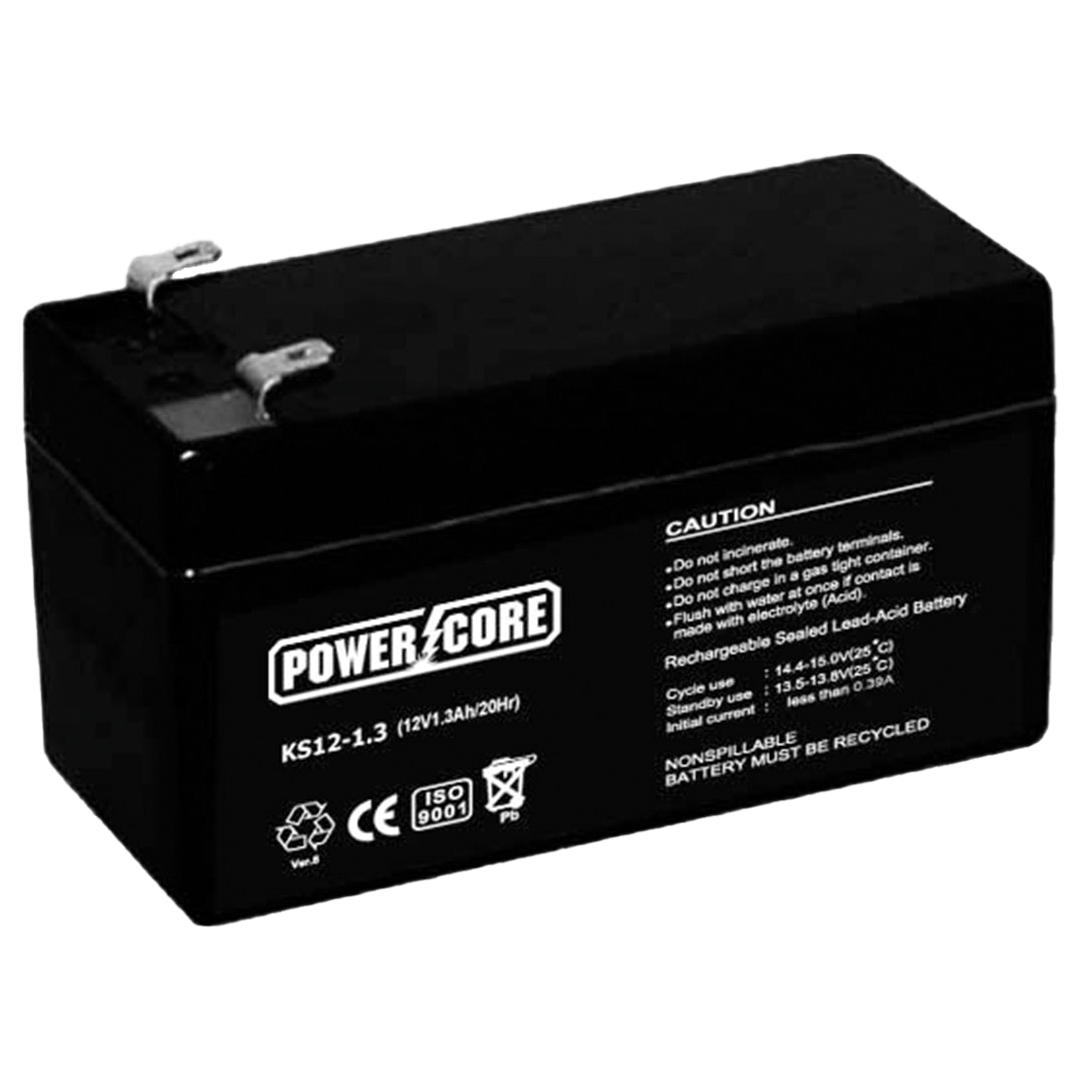

Gel Battery 12V 1.3Amp
The Gel Battery 12V 1.3Amp: Compact yet powerful, this gel battery packs a punch. With a focus on reliability and efficiency, it’s the ideal choice for applications requiring steady power in a small form factor. Trust in the Gel Battery 12V 1.3Amp for your energy needs.
Gel Battery 12V 1.3Amp
Specifications
Parameters: Gel Battery PS1.3-12
- Nominal Voltage (V): 12V (6 cells in series)
-
Rated Capacity: 1.3Ah (C201, .75V/cell)
-
Dimensions(mm):
Length: 97.5 ± 1.5 mm
Width: 43.5± 1 mm
Height: 52.5 ± 1.5 mm
Total Height: 58 ± 1.5 mm
-
Nominal Capacity @25’C (Ah):
20 Hour rate (0.364A to 10.5 volts) 1.32Ah
10 Hour rate (0.695A to 10.5 volts) 1.25Ah
5 Hour rate (1.242A to 10.5 volts) 1.12Ah
1 Hour rate (4.680A to 9.6 volts) 0.84Ah
15 min rate (13.86A to 9.6 volts) 0.62Ah
-
Approx. Weight: 0.56Kg
-
Terminal: T1-A
-
Max.Discharge Current: 18A @25’C (5s)
-
Internal Resistance: 85mO @25’t (Full Charged Battery)
-
Floating Design Life: 5 years @25’C
-
Ambient Temperature:
Charge: -15’C-50’C
Discharge: -20’C~60’C
Storage: -20’C~50’C
-
Container Material: A.B.S, UL94-HB, UL94-V0, Optional
-
Self Discharge: VRLA batteries can be stored for more than 6months at 25’C. Self-Discharge ratio less than 3% per month at 25’C. Please charge batteries before using.
