Gel Battery 12V 55Amp
Gel Battery 12V 55Amp

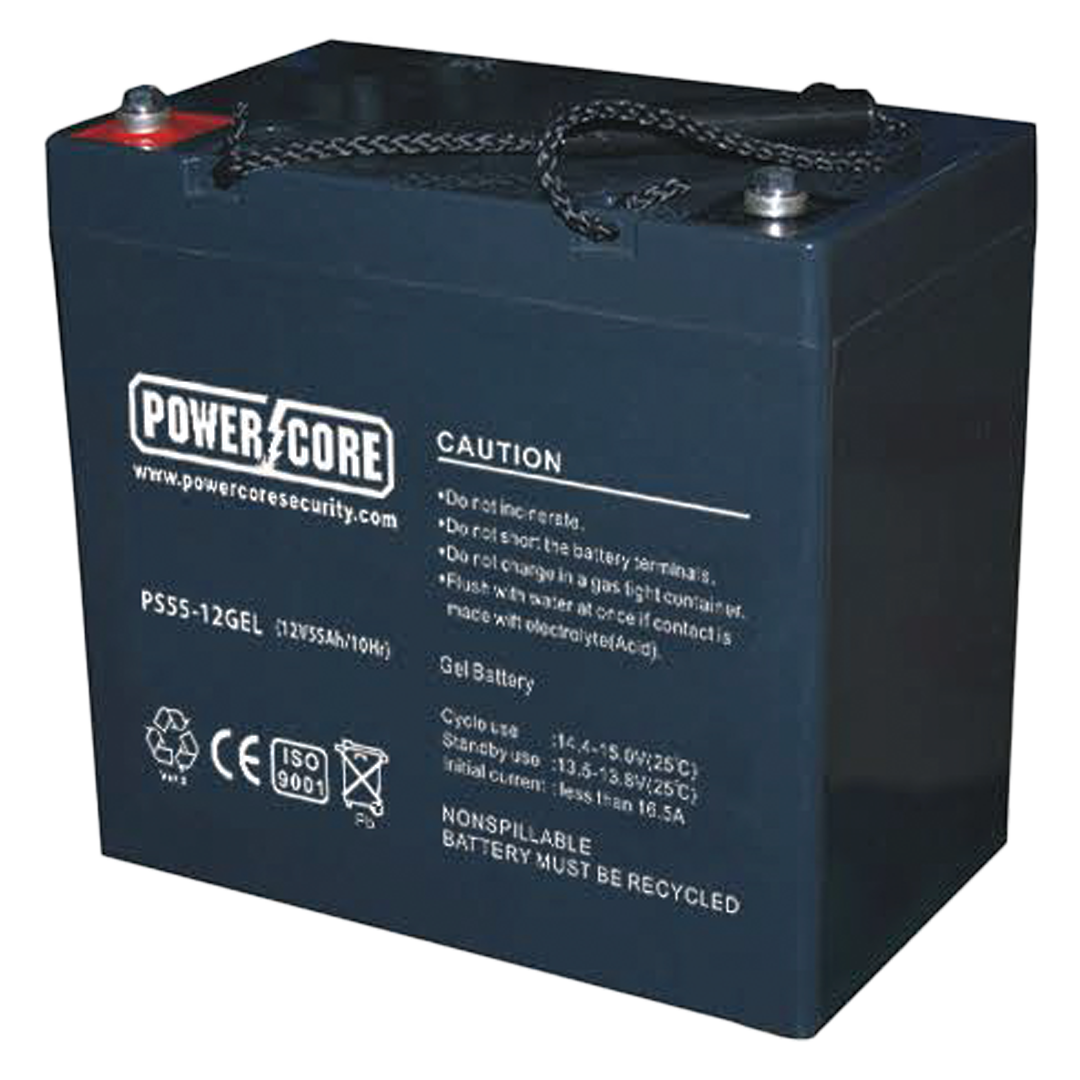

Powercore 12V 55Ah Gel Battery – High-performance, maintenance-free power. Ideal for solar, marine, and RV applications
Gel Battery 12V 55Amp
Specifications
- Nominal Voltage (V): 12V (6 cells in series)
- Rated Capacity:55.0Ah (C,o, 1.80V /cell)
- Dimensions(mm):
Length: 229±3 mm
Width: 138±2 mm
Height: 211±3mm
Total Height 214±3 mm
- Nominal Capacity @25’t (Ah):
20 Hour rate (2.948A to 10.8 volts) 58.9Ah
10 Hour rate (5.555A to 10.8 volts)
5 Hour rate (9.51 0A to 10.8 volts)
1 Hour rate (35.75A to 9.6 volts)
- Approx. Weight 16.5 kg
- Terminal T12
- Max.Discharge Current 440A @25°C (5s)
- Internal Resistance @25°C (Full Charged Battery)
- Floating Design Life: 12 years @25°C
- Ambient Temperature
Charge: -20°C~50°C
Discharge: -40°C~60°C
Storage: -20°C~60°C
- Container Material: A.B.S, UL94-HB, UL94-V0, Optional
- Self Discharge: GEL battery can be stored for more than 6 months at 25°C. Self-Discharge ratio less than 3% per month at 25°C. Please charge batteries before using.
