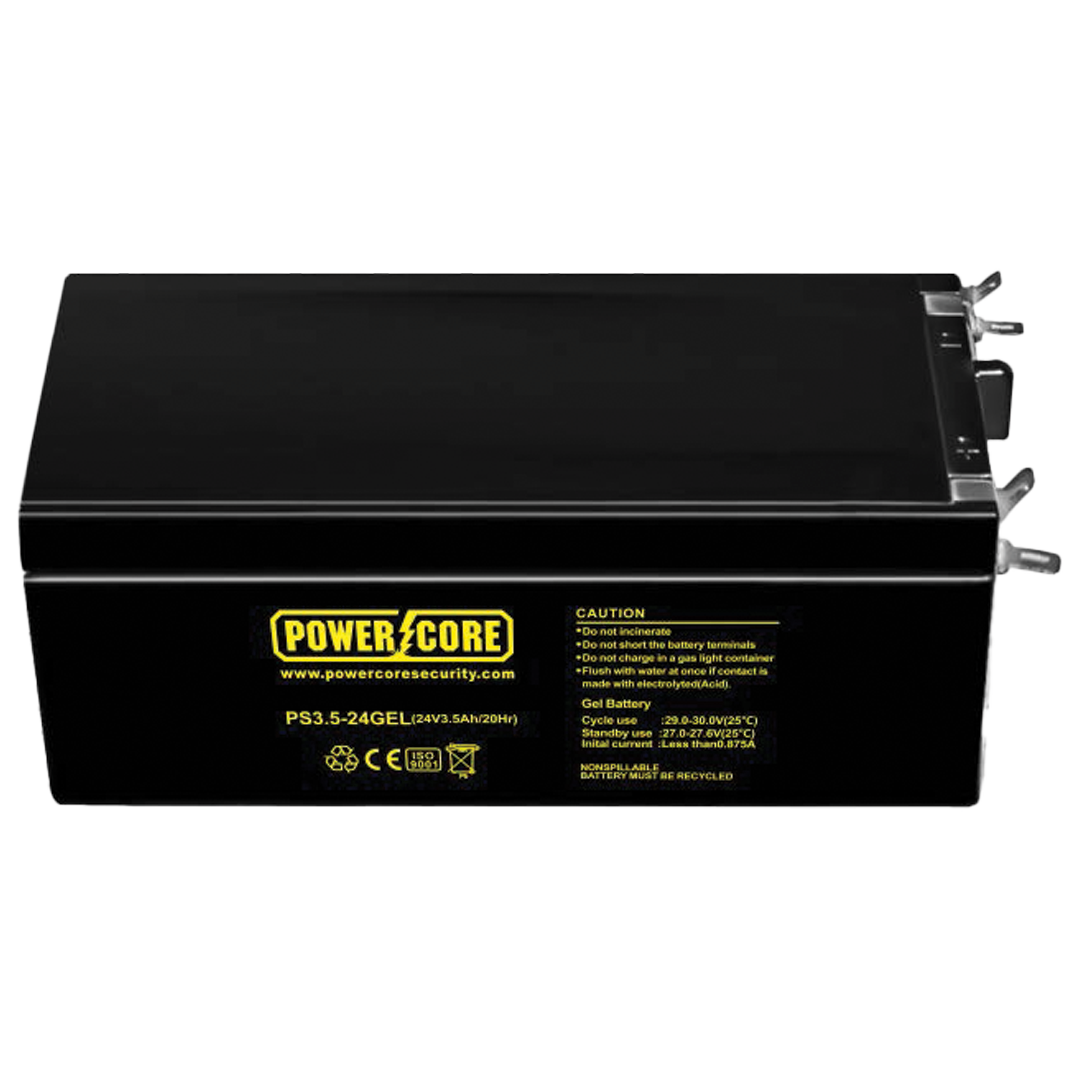

Gel Battery 24V 3.5Amp

General Features

• Nanosilica colloidal electrolyte and high tin positive plate alloy design to enhance battery performance
• Relatively rich electrolyte, high temperature and low temperature performance is superior
• Long cycle life, excellent deep cycle discharge ability
• Excellent charge acceptance ability
• Precision sealing technology
• Long life

Applications

• Solar / wind energy and other new energy storage
• UPS/EPS Power systems
• Telecommunications system
• Emergency lighting
• Auto control system
• Other general purpose

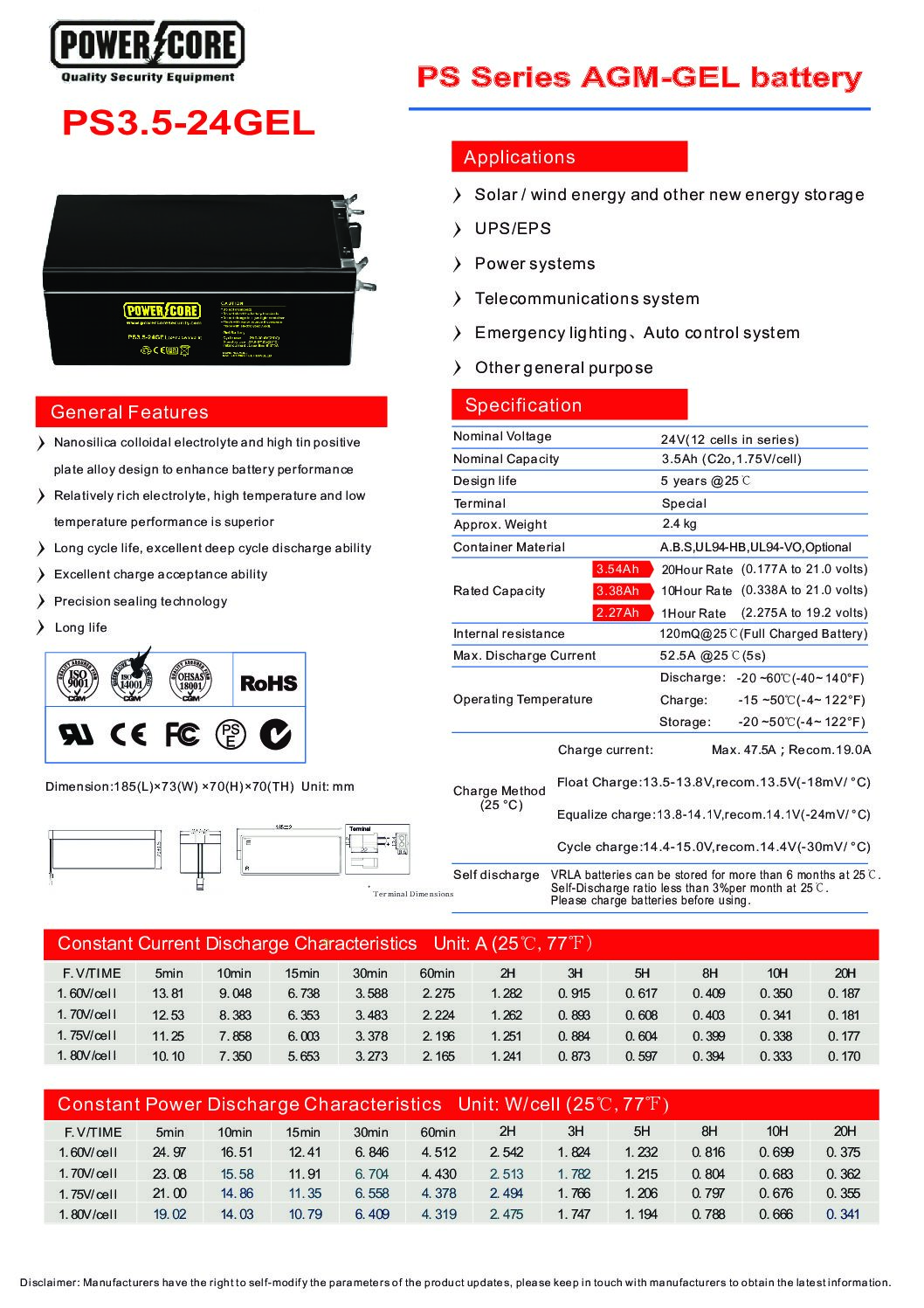

Specification

• Nominal Voltage 24V(12 cells in series)
• Nominal Capacity 3.5Ah (C2o,1.75V/cell)
• Design life 5 years @25℃
• Terminal Special
• Container Material A.B.S,UL94-HB,UL94-VO,Optional
• Approx. Weight 2.4 kg
• Internal resistance: 120mQ@25℃(Full Charged Battery)
• Max. Discharge Current: 52.5A @25℃(5s)
• Operating Temperature

Discharge: -20 ~60℃(-40~ 140°F)

Charge: -15 ~50℃(-4~ 122°F)

Storage: -20 ~50℃(-4~ 122°F)

• Self discharge VRLA batteries can be stored for more than 6 months at 25℃. Self-Discharge ratio less than 3% per month at 25℃. Please charge batteries before using.

Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.
