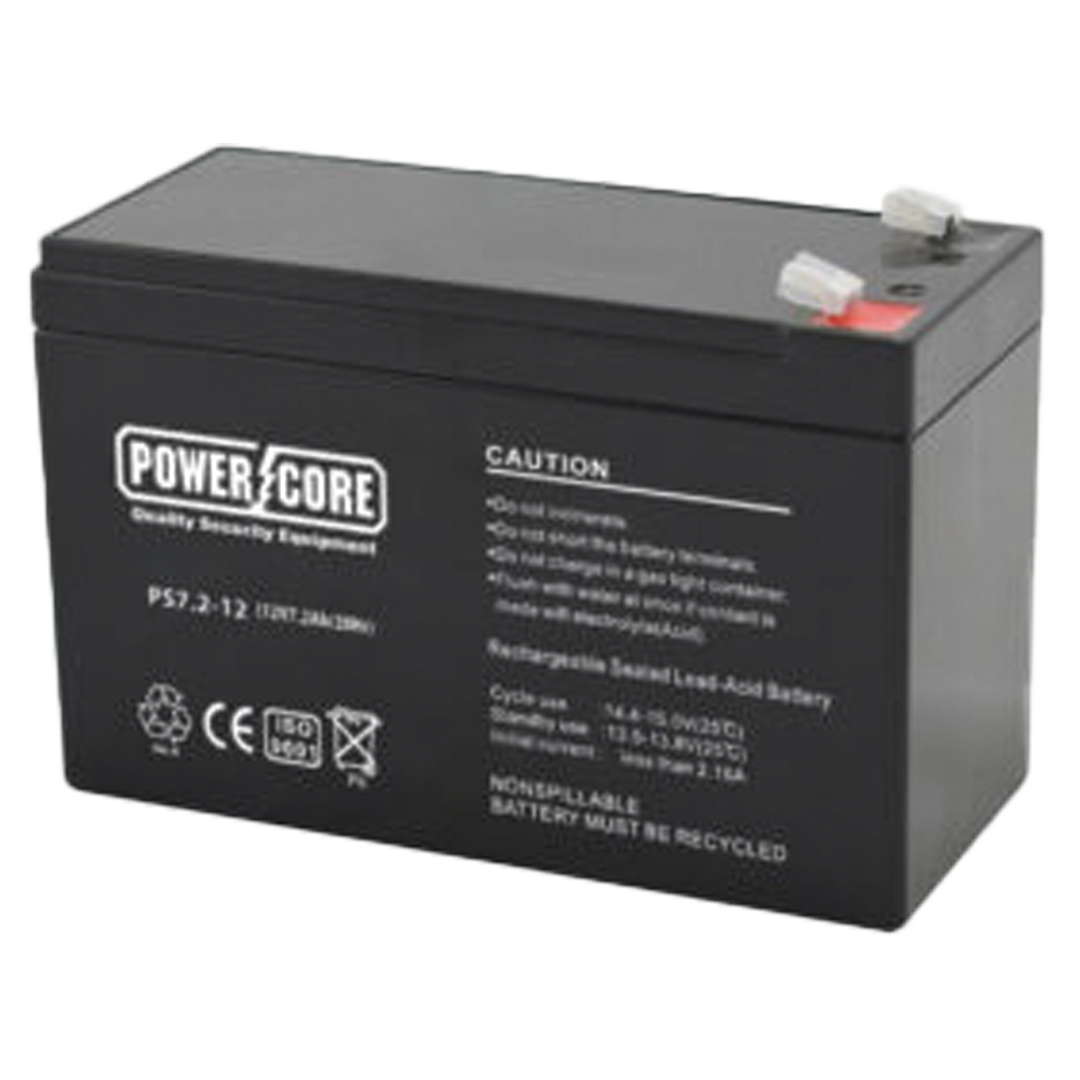

Gel Battery PS7.2-12
Introducing the Gel Battery PS7.2-12: Your reliable source of power. This high-quality gel battery is built to deliver dependable performance and a long service life. Whether for backup power or various applications, count on the PS7.2-12 to keep you powered up.
Gel Battery PS7.2-12

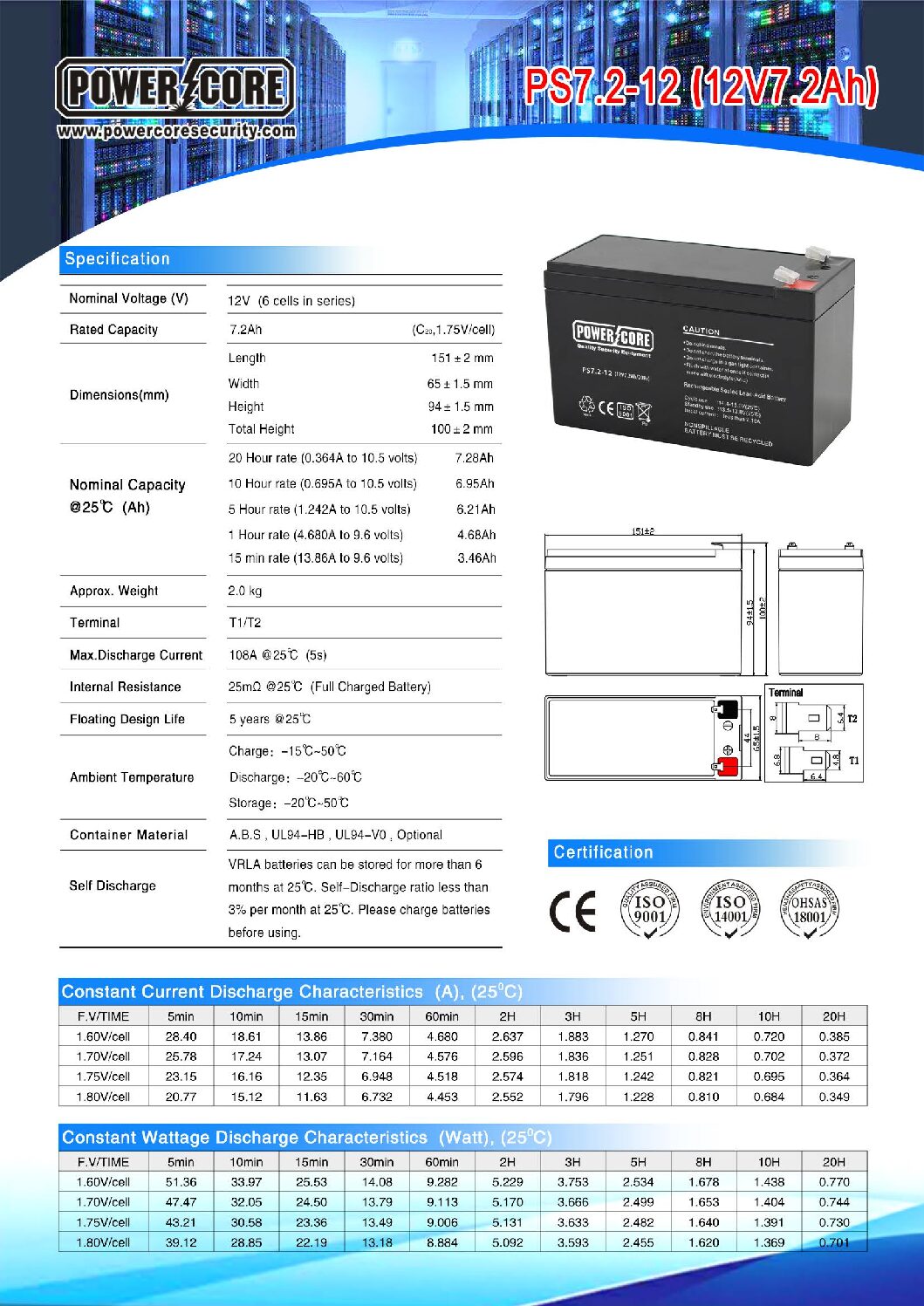

Specifications
Parameters: Gel Battery PS7.2-12
- Nominal Voltage (V): 12V (6 cells in series)
-
Rated Capacity: 7.2Ah (C201, .75V/cell)
-
Dimensions(mm):
Length: 151 ±2 mm
Width: 65± 1.5 mm
Height: 94± 1.5 mm
Total Height 100 ± 2 mm
-
Nominal Capacity @25’C (Ah):
20 Hour rate (0.364A to 10.5 volts) 7.28Ah
10 Hour rate (0.695A to 10.5 volts) 6.95Ah
5 Hour rate (1.242A to 10.5 volts) 6.21Ah
1 Hour rate (4.680A to 9.6 volts) 4.68Ah
15 min rate (13.86A to 9.6 volts) 3.46Ah
-
Approx. Weight: 2Kg
-
Terminal: T1/T2
-
Max.Discharge Current: 108A @25’C (5s)
-
Internal Resistance: 25mO @25’C (Full Charged Battery)
-
Floating Design Life: 5 years @25’C
-
Ambient Temperature:
Charge: -15’C-50’C
Discharge: -20’C~60’C
Storage: -20’C~50’C
-
Container Material: A.B.S, UL94-HB, UL94-V0, Optional
-
Self Discharge: VRLA batteries can be stored for more than 6months at 25’C. Self-Discharge ratio less than 3% per month at 25’C. Please charge batteries before using.
