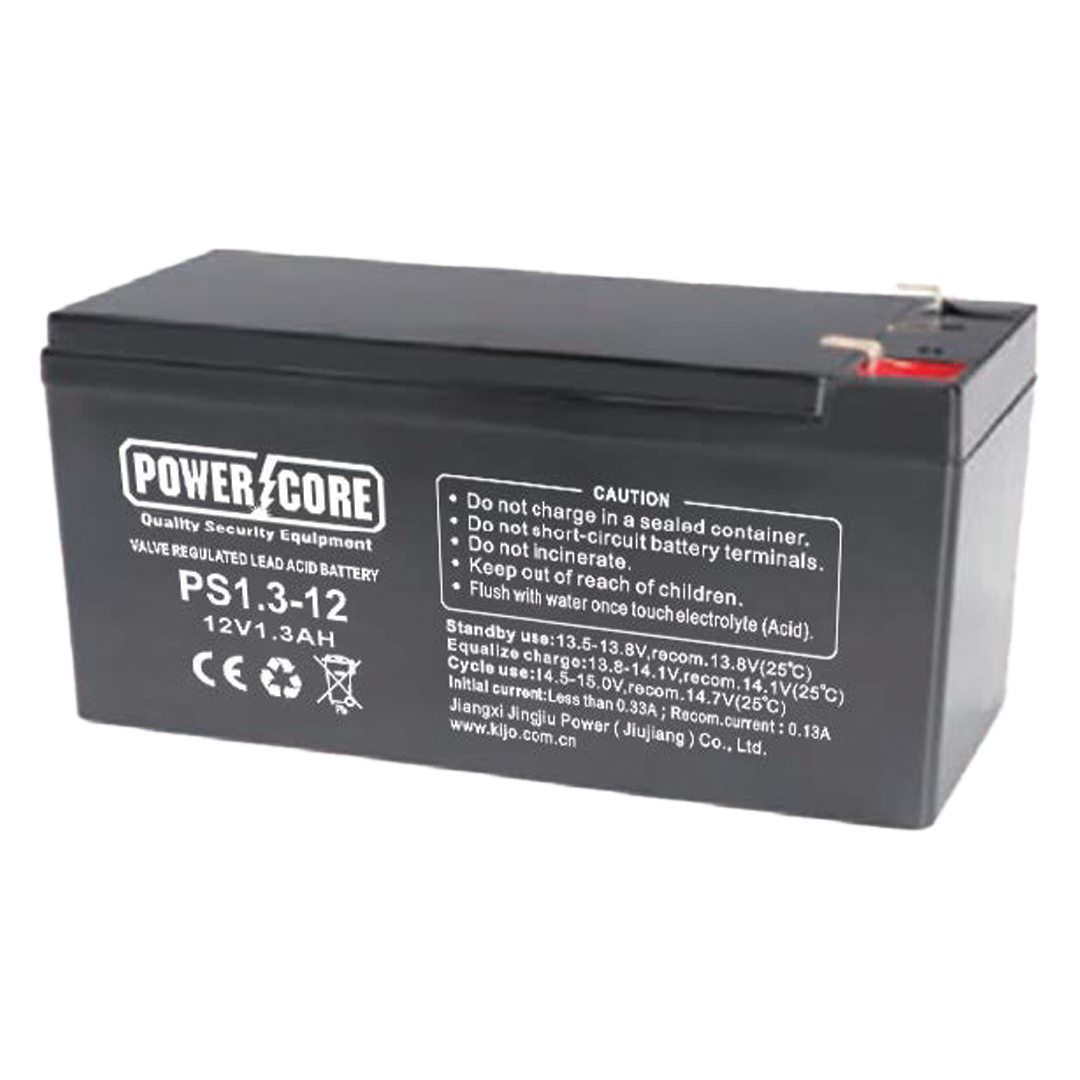

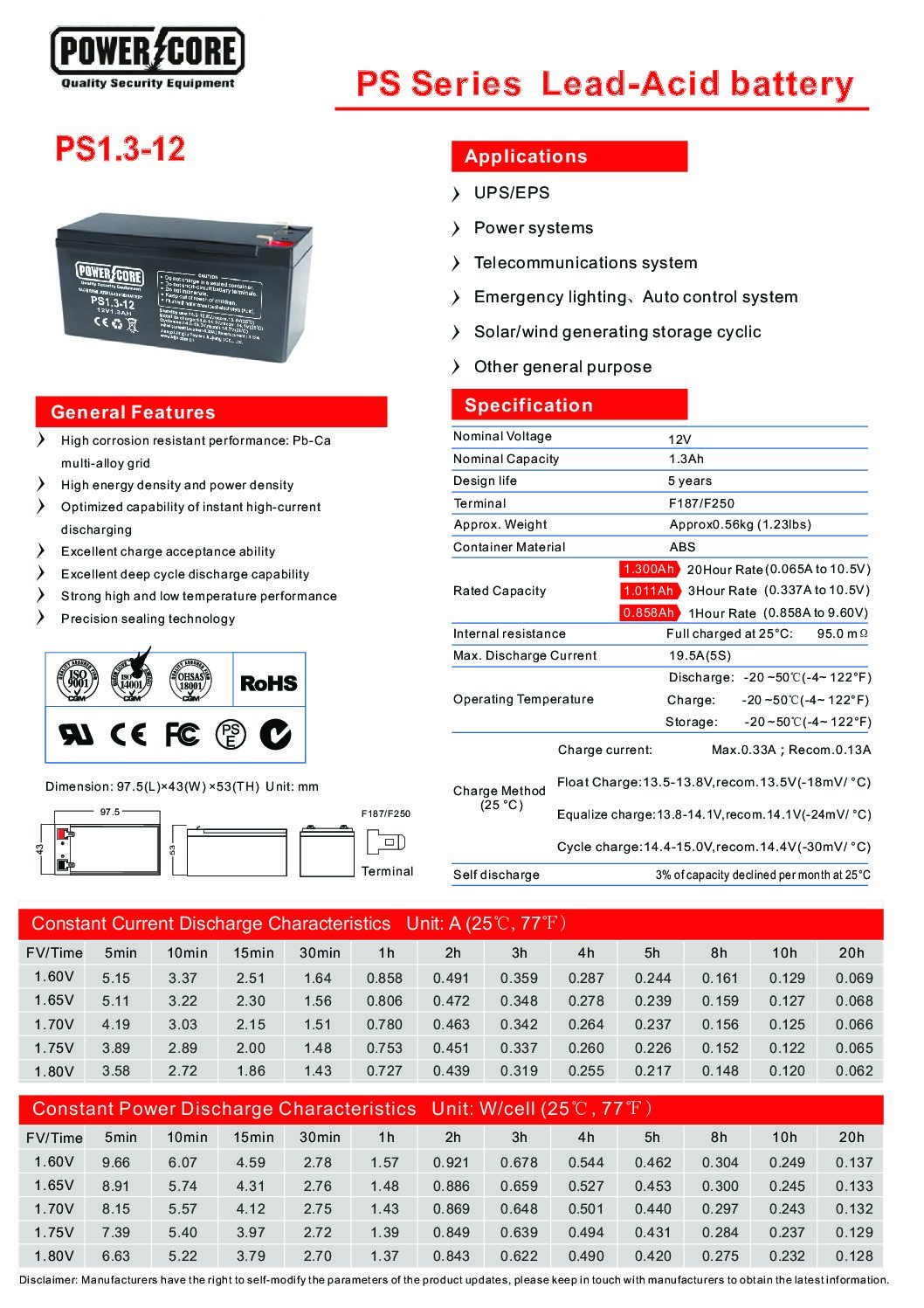

Lead-Acid 12V 1.3Amp

General Features Specification

• Dimension: 97.5(L)×43(W) ×53(TH) Unit: mm
• Nominal Voltage 12V
• Nominal Capacity 1.3Ah
• Design life 5 years
• Terminal F187/F250
• Container Material ABS
• Internal resistance Full charged at 25°C: 95.0 mΩ
• Approx. Weight Approx0.56kg (1.23lbs)
• Max. Discharge Current 19.5A(5S)
• Rated Capacity

20Hour R 1.300Ah ate (0.065A to 10.5V)

0.858Ah 1Hour Rate (0.858A to 9.60V)

1.011Ah 3Hour Rate ( 0 .337A to 10.5V)

• High corrosion resistant performance: Pb-Ca multi-alloy grid
• High energy density and power density
• Optimized capability of instant high-current discharging
• Excellent charge acceptance ability
• Excellent deep cycle discharge capability
• Strong high and low temperature performance
• Precision sealing technology
• Constant Current Discharge Characteristics Unit: A (25℃,77℉)
• Constant Power Discharge Characteristics Unit: W/cell (25℃, 77℉)
• Operating Temperature Charge : -20 ~50℃(-4~ 122°F)
• Discharge: -20 ~50℃(-4~ 122°F)
• Storage: -20 ~50℃(-4~ 122°F)

Applications

• UPS/EPS
• Power systems
• Telecommunications system
• Emergency lighting、Auto control system
• Solar/wind generating storage cyclic
• Other general purpose

Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.
