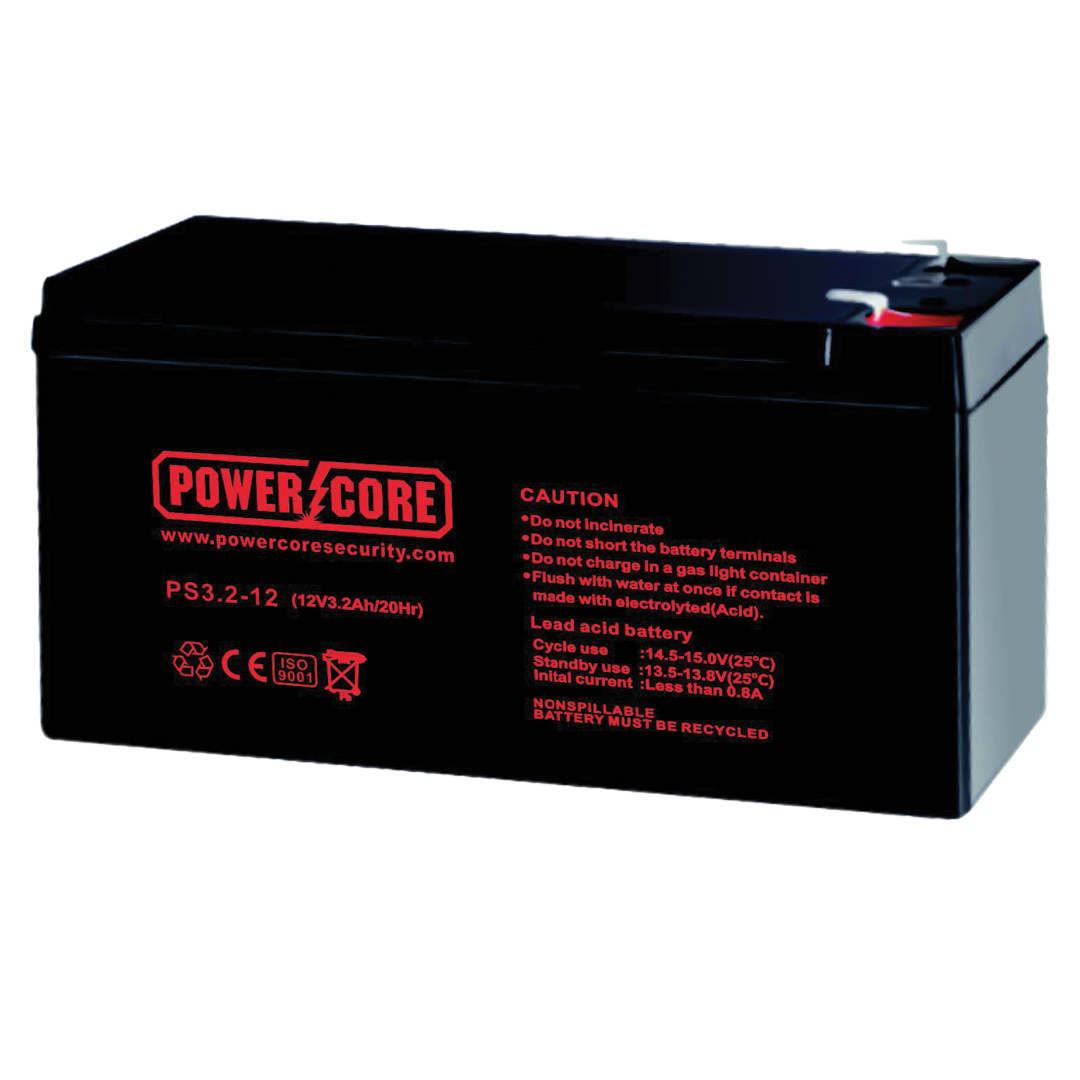

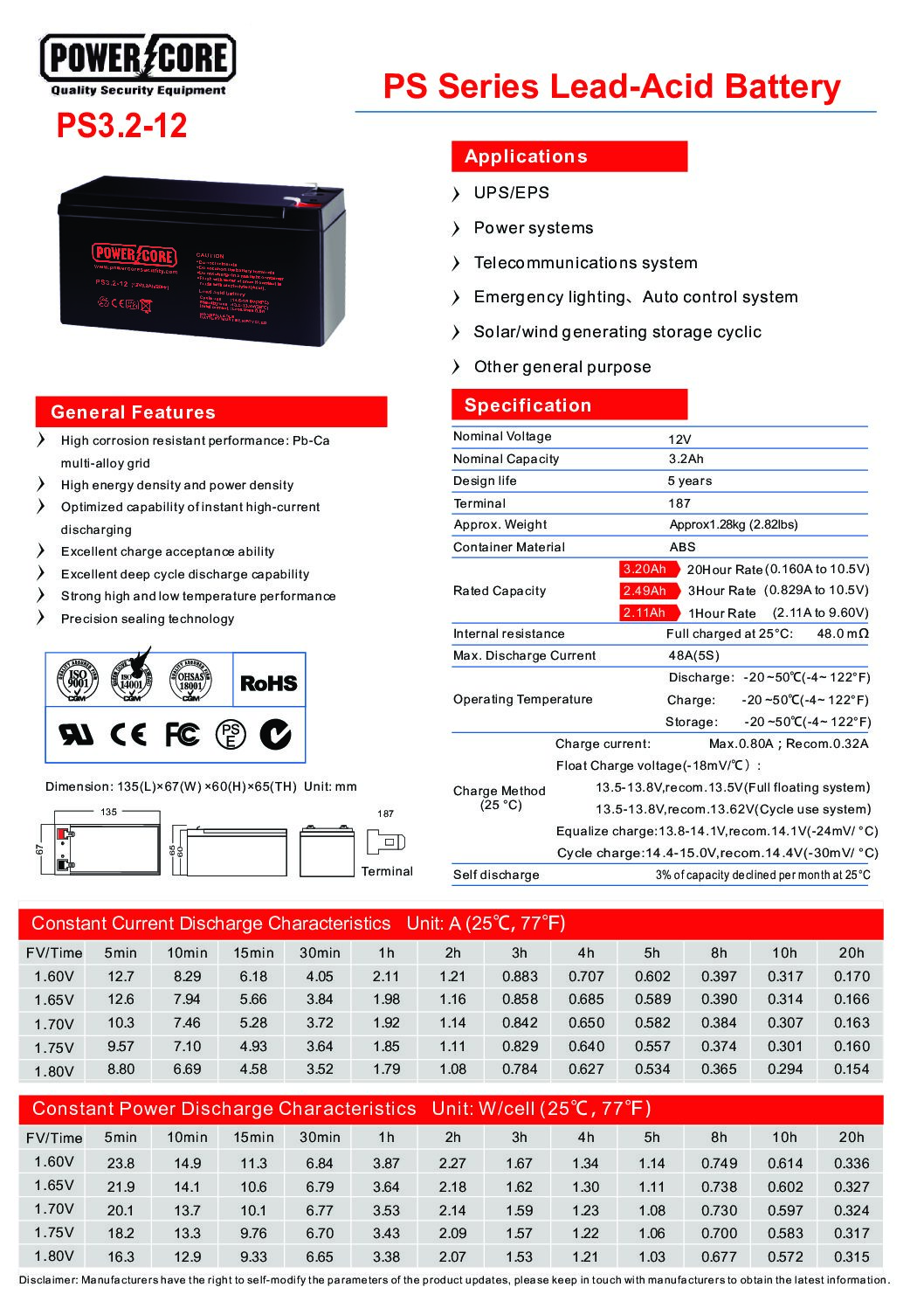

Lead-Acid 12V 3.2Amp

General Features Specification

• Dimension: 135(L)Å~67(W) Å~60(H)Å~65(TH) Unit: mm
• Nominal Voltage 12V
• Nominal Capacity 3.2Ah
• Design life 5 years
• Terminal 187
• Container Material ABS
• Internal resistance Full charged at 25°C: 48.0 mΩ
• Approx. Weight Approx1.28kg (2.82lbs)
• Max. Discharge Current 48A(5S)
• Self discharge 3 % o f capacity declined per month at 25°C
• Rated Capacity

3. 2 0 A h 20Hour Rate (0.160A to 10.5V)

2.11Ah 1Hour Rate (2.11A to 9.60V)

2.49Ah 3Hour Rate ( 0 .829A to 10.5V)

• High corrosion resistant performance: Pb-Ca multi-alloy grid
• High energy density and power density
• Optimized capability of instant high-current discharging
• Excellent charge acceptance ability
• Excellent deep cycle discharge capability
• Strong high and low temperature performance
• Precision sealing technology
• Operating Temperature Charge : -20 ~50℃(-4~ 122°F)
• Discharge: -20 ~50℃(-4~ 122°F)
• Cycle charge:14.4-15.0V,recom.14.4V(-30mV/ °C)
• Float Charge voltage(-18mV/℃）:
• Equalize charge:13.8-14.1V,recom.14.1V(-24mV/ °C)
• Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
• Constant Power Discharge Characteristics Unit: W/cell (25℃, 77℉)

Applications

• UPS/EPS
• Power systems
• Telecommunications system
• Emergency lighting、Auto control system
• Solar/wind generating storage cyclic
• Other general purpose

Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.
