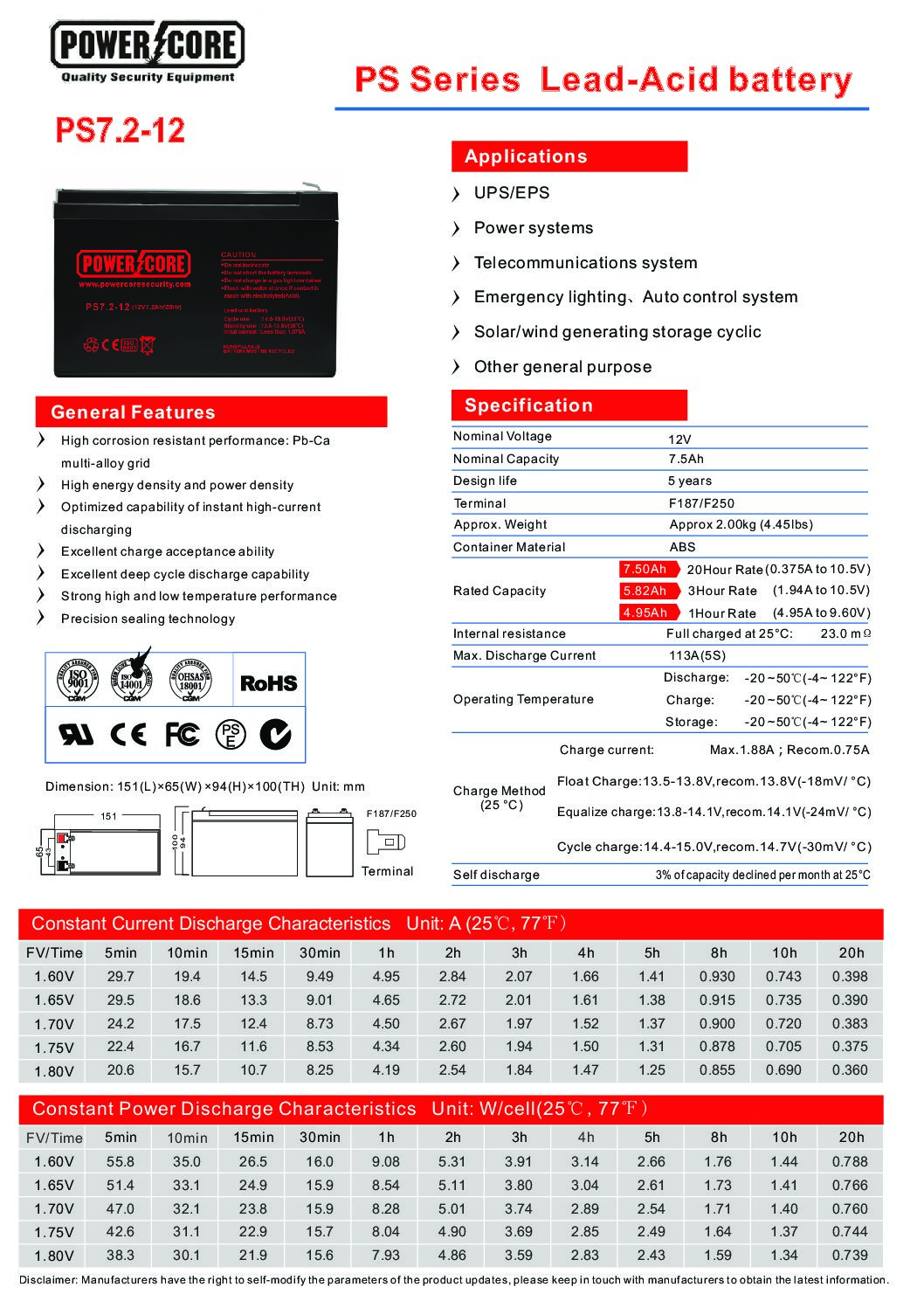

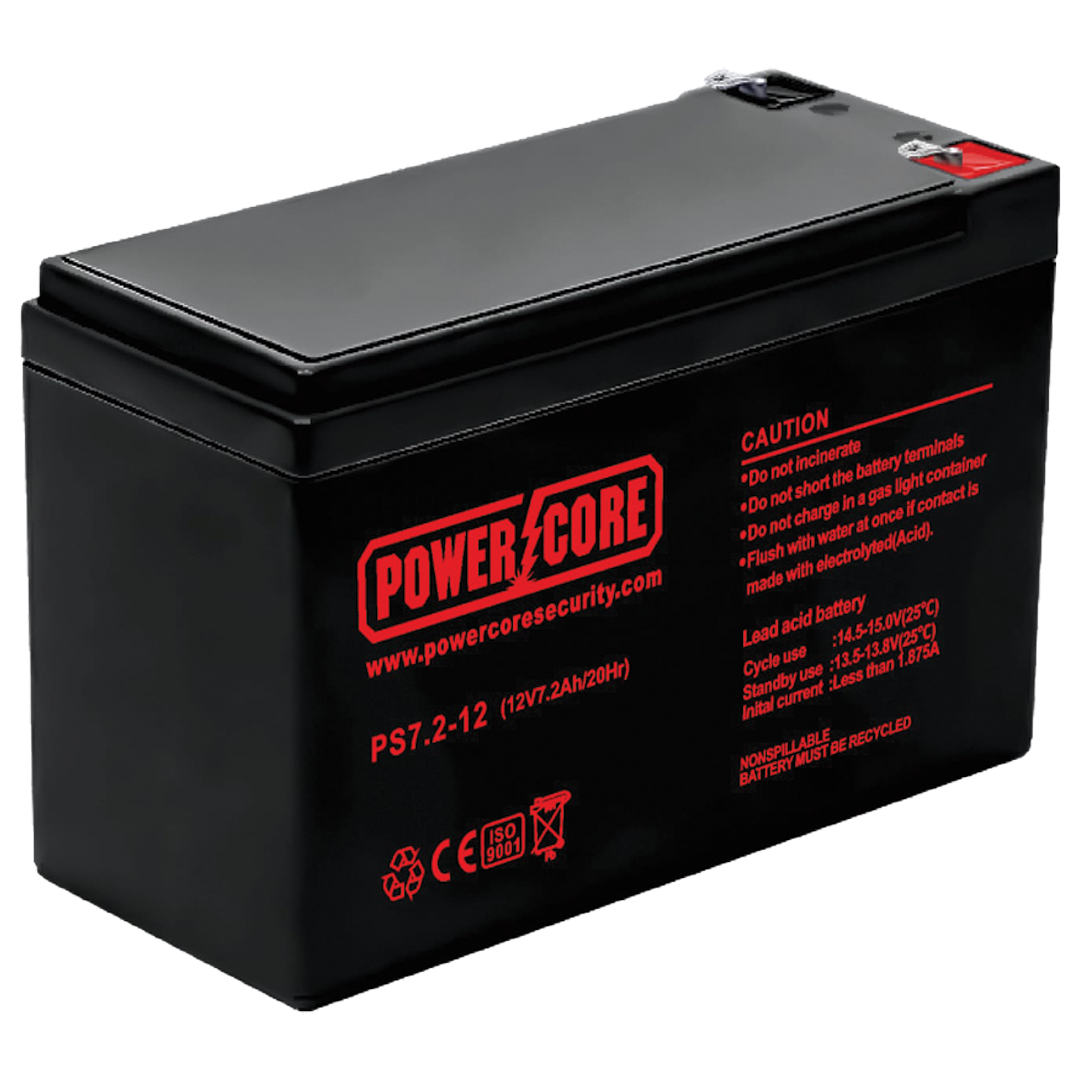

Lead-Acid 12V 7.2Amp

General Features Specification

• Dimension: 151(L)×65(W) ×94(H)×100(TH) Unit: mm

• High corrosion resistant performance: Pb-Ca multi-alloy grid

• High energy density and power density

• Optimized capability of instant high-current discharging

• Excellent charge acceptance ability

• Excellent deep cycle discharge capability

• Strong high and low temperature performance

• Precision sealing technology

Specifications

• Nominal Voltage 12V
• Nominal Capacity 7.5Ah
• Design life 5 years
• Terminal F187/F250
• Container Material ABS
• Internal resistance Full charged at 25°C: 23.0 mΩ
• Approx. Weight Approx 2.00kg (4.45lbs)
• Max. Discharge Current 113A(5S)
• Rated Capacity

7. 5 0 A h 20Hour Rate (0.375A to 10.5V)

4.95Ah 1Hour Rate (4.95A to 9.60V)

5.82Ah 3Hour Rate ( 1.94A to 10.5V)

• Internal resistance Full charged at 25°C: 23.0 mΩ

• Self discharge 3 % o f capacity declined per month at 25°C

Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.
