Lead-Acid 24V 3.5Amp
Lead-Acid 24V 3.5Amp

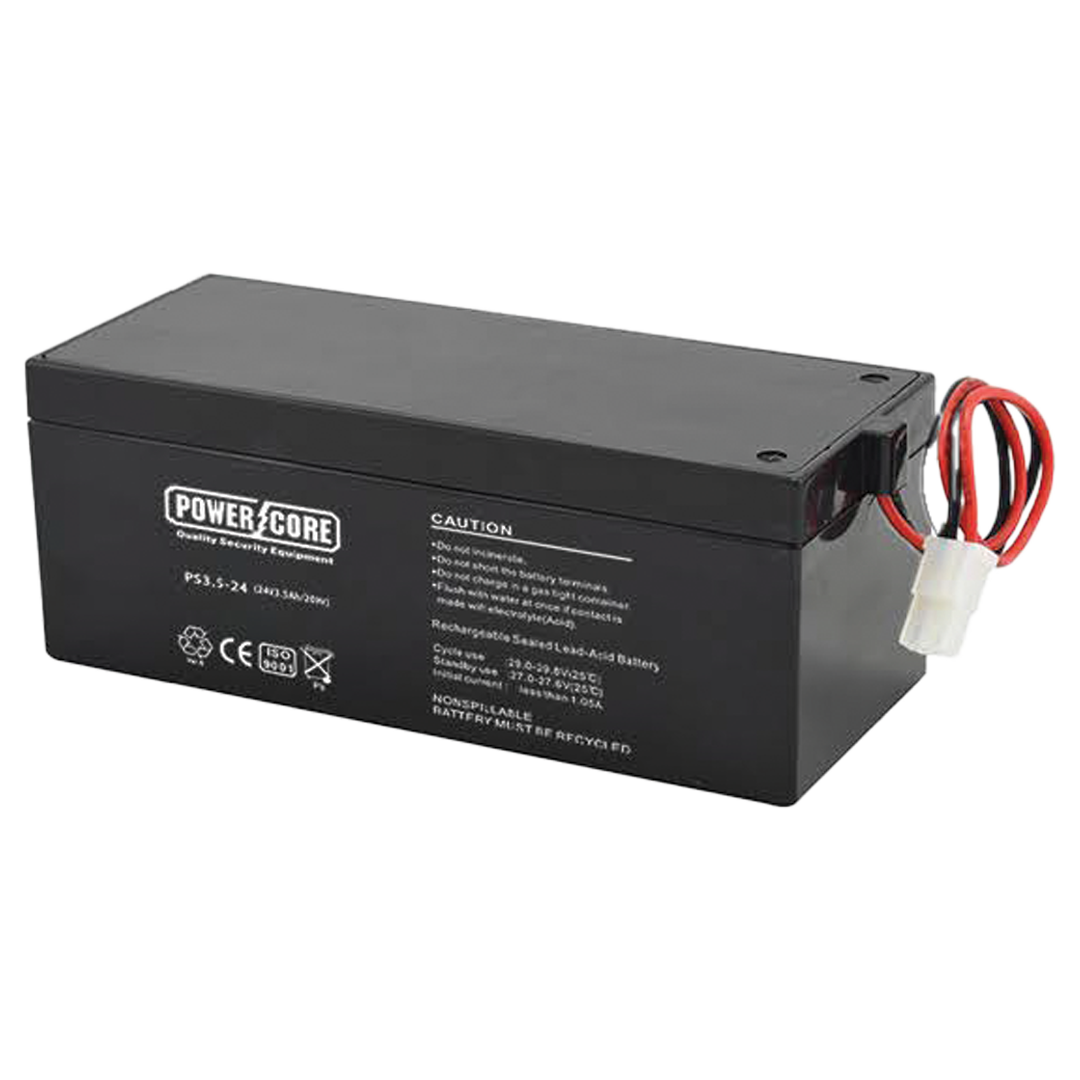

Powercore 24V 3.5Ah Lead-Acid battery provides reliable power for various applications. Ideal for UPS systems, solar installations, and backup power.
Lead-Acid 24V 3.5Amp

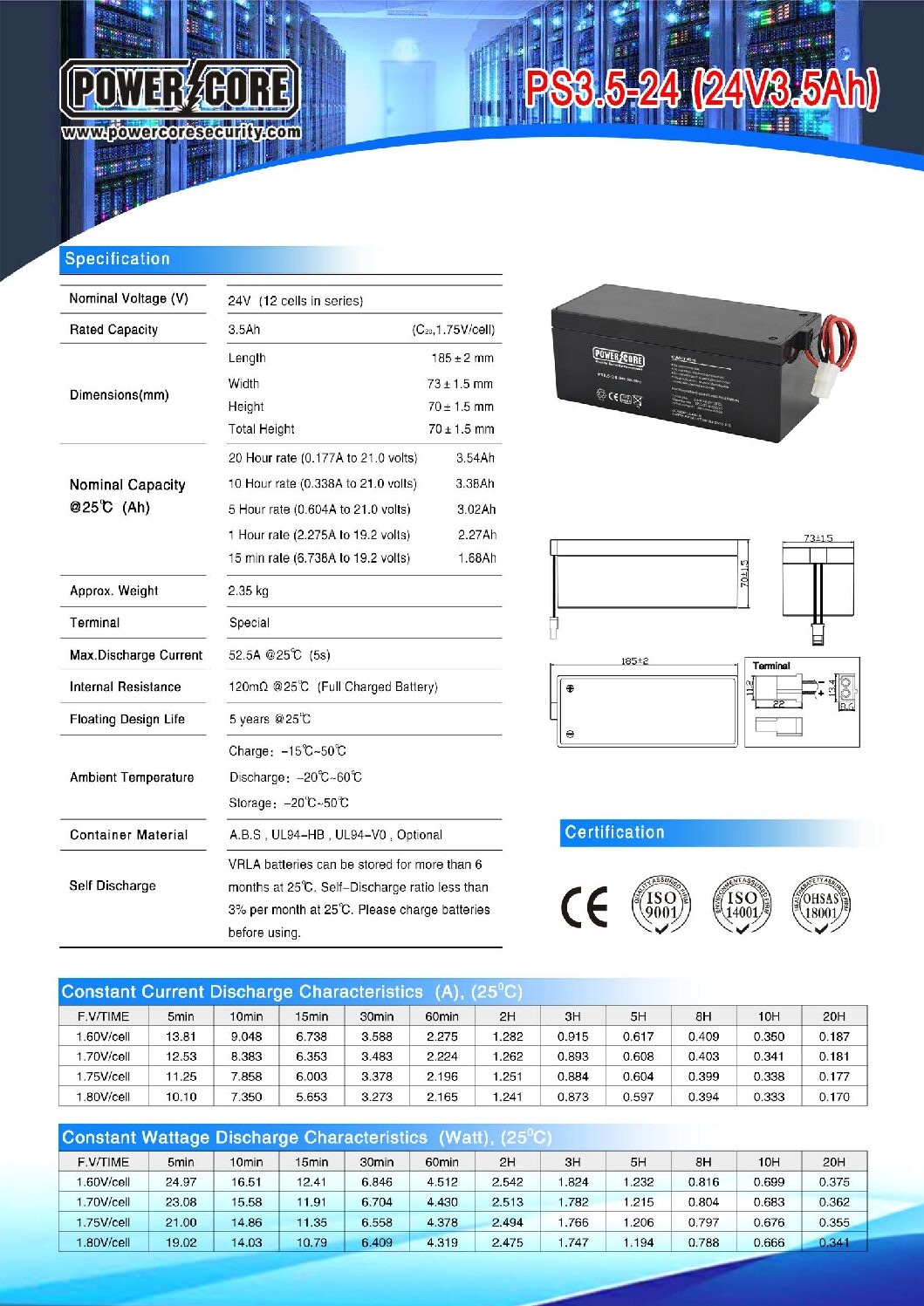

Specifications
- Nominal Voltage: 24V (12 cells in series)
- Rated Capacity: 3.5Ah (C20, 1. 75V/cell)
- Dimensions(mm):
Length: 185±2 mm
Width: 73± 1.5 mm
Height: 70± 1.5 mm
Total Height 70 ± 1.5 mm
-
Approx. Weight: 2.35Kg
-
Terminal: Special
-
Max.Discharge Current: 52.5A @25C (5s)
-
Internal Resistance: 120mO @25’t (Full Charged Battery)
-
Floating Design Life: 5 years @ 25C
-
Ambient Temperature:
Charge: -15’C-50’C
Discharge: -20’t-60’C
Storage: -20’C-50’C
-
Container Material: A.B.S, UL94-HB, UL94-V0, Optional
-
Self Discharge: VRLA batteries can be stored for more than 6 months at 25’t. Self-Discharge ratio less than 3% per month at 25’C. Please charge batteries before using.
