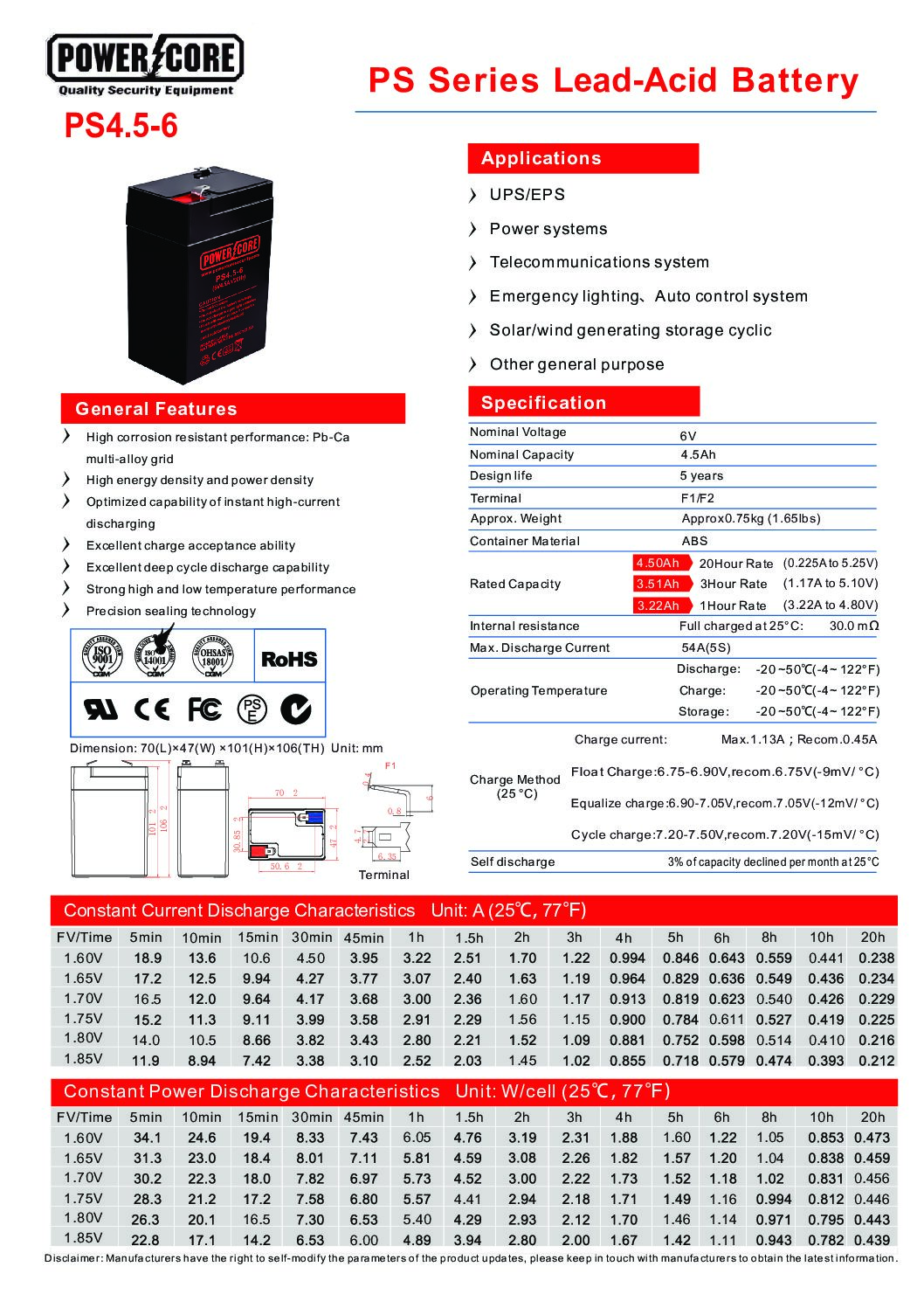

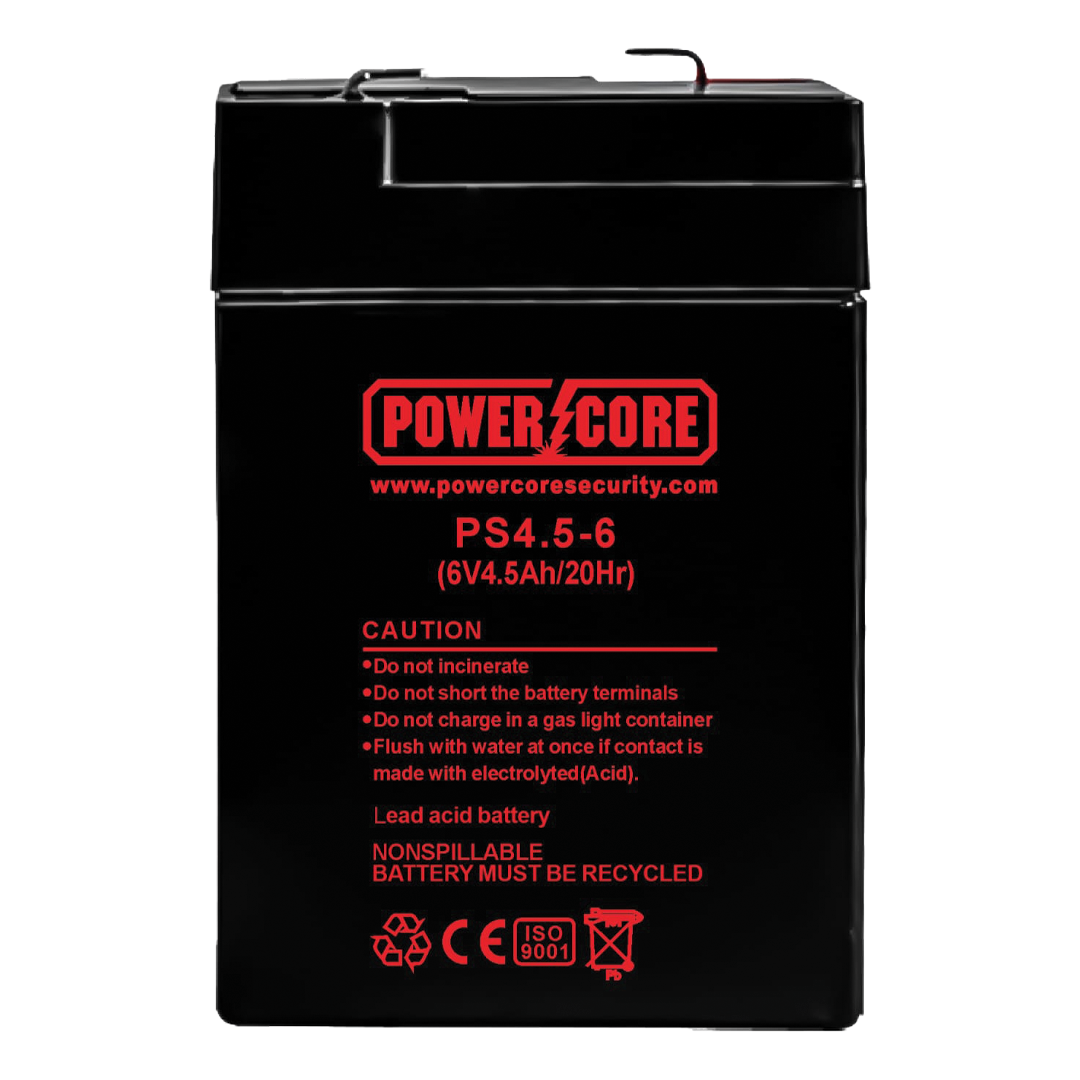

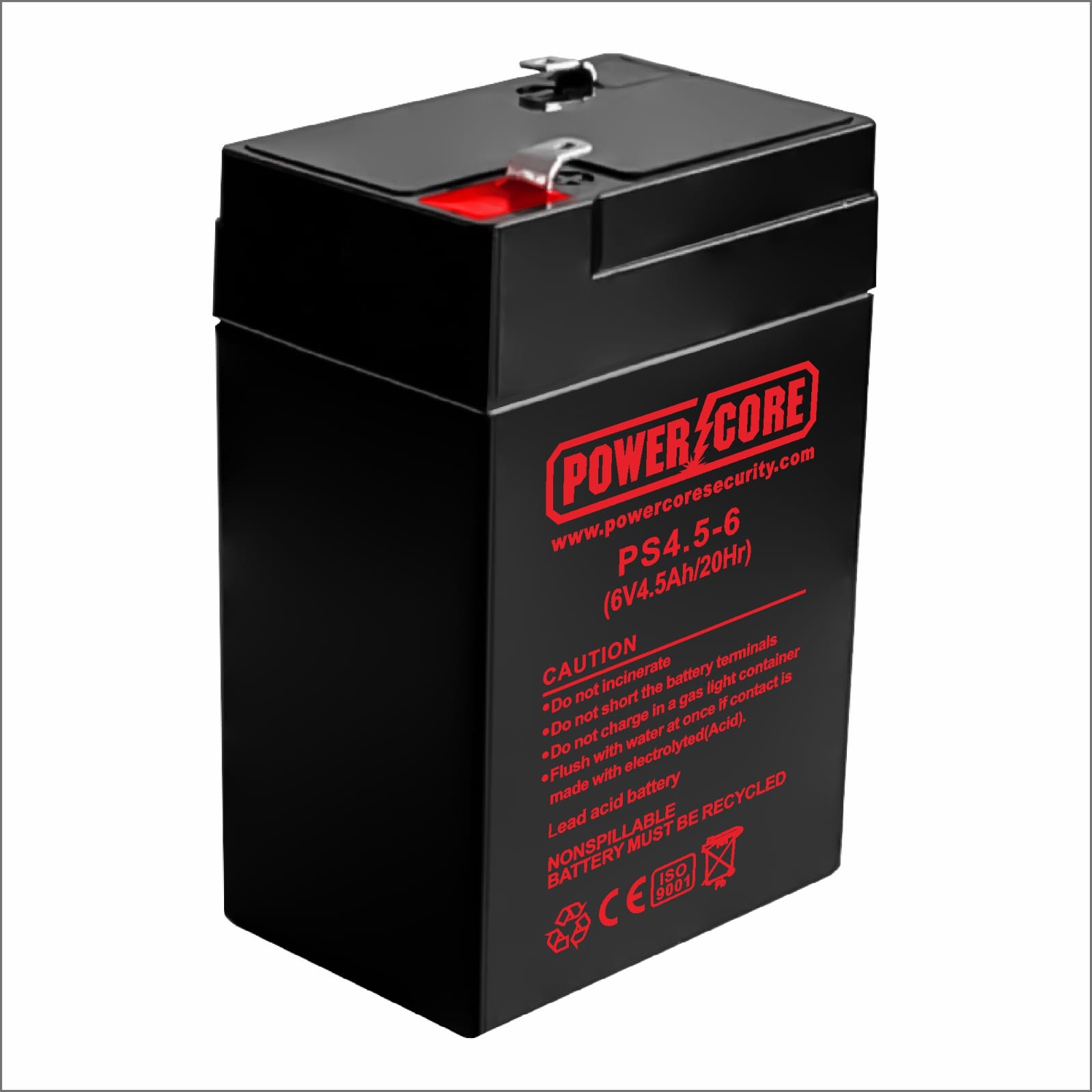

Lead-Acid 6V 4.5Amp

General Features

• High corrosion resistant performance: Pb-Ca multi-alloy grid
• High energy density and power density
• Optimized capability of instant high-current discharging
• Excellent charge acceptance ability
• Excellent deep cycle discharge capability
• Strong high and low temperature performance
• Precision sealing technology

Applications

• UPS/EPS Power systems
• Telecommunications system
• Emergency lighting
• Auto control system
• Solar/wind generating storage cyclic
• Other general purpose

Specification

• Nominal Voltage 6V
• Nominal Capacity 4.5Ah
• Design life 5 years
• Terminal F1/F2
• Container Material ABS
• Internal resistance: Full charged at 25°C: 30.0 mΩ
• Approx. Weight Approx0.75kg (1.65lbs)
• Operating Temperature

Discharge: -20 ~50℃(-4~ 122°F)

Charge : -20 ~50℃(-4~ 122°F)

Storage: -20 ~50℃(-4~ 122°F)

• Charge Method (25 °C)

Charge current: Max.1.13A；Recom.0.45A

Float Charge:6.75-6.90V,recom.6.75V(-9mV/ °C)

Equalize charge:6.90-7.05V,recom.7.05V(-12mV/ °C)

Cycle charge:7.20-7.50V,recom.7.20V(-15mV/ °C)

• Self discharge 3 % o f capacity declined per month at 25°C

Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.
