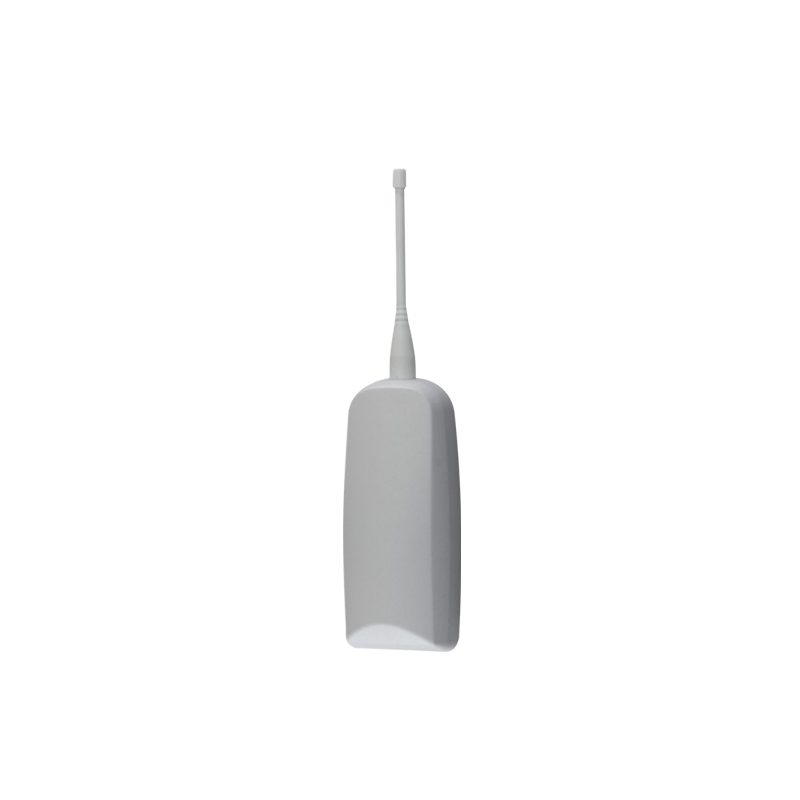

Long Range Repeater

SKU: SX016 Category: Tags: , , ,

Introducing the Long Range Repeater: Amplify signals across vast areas with maximum effectiveness. This essential device enhances signal coverage over large sites, ensuring seamless communication and control. Amplify your range with the Long Range Repeater.

Long Range Repeater

APPLICATIONS

  • Transmission of Alarm signals
  • Linking Electric Fence outputs to Alarms
  • Switching On/Off Pumps on farms
  • Industrial Machinery Control
  • Wireless control of Generators

FEATURES

  • Code-Hopping Encryption
  • Auto Learning of signals to memory
  • 4000 memory locations
  • Auto Masking of repeated signals
  • AC Fail RF Signal Output
  • Random signal staggering

SPECIFICATIONS

  • Encryption: Code-Hopping

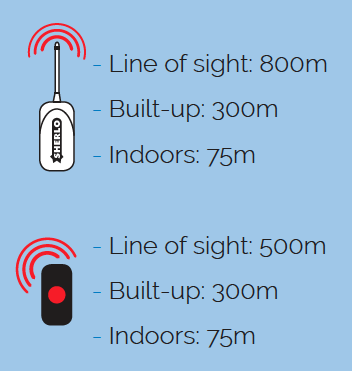

  • Transmit – Range: 800m (Open air)
  • Receiver – Range: 500m (Open air)
  • eEprom Memory: 4000 codes
  • Frequencies: 403MHz / 433MHz
  • Voltage Range: 9.8V to 16V DC
  • Current on TX: >60mA
  • Sleep mode: >10mA
  • Dimensions (lxbxh): 187 x 104 x 67mm
  • Gross Weight: 235 grams
  • Operating Temp: -3°C to 60°C
  • Warranty: 24 Months
