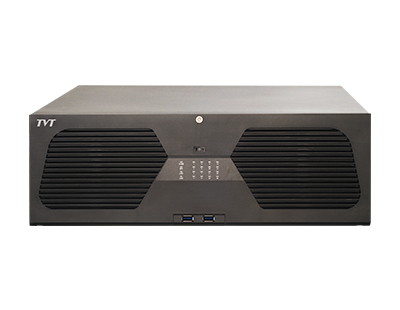

| Model |
TD-3364B16-A2 |
TD-33128B16-A2 |
| System |
OS |
Embedded Linux |
| Video |
IP Video Input |
64 CH |
128 CH |
| Incoming Bandwidth |
640Mbps |
640Mbps |
| Outgoing Bandwidth |
Display Priority: 128Mbps Network Priority: 640Mbps |
Display Priority: 128Mbps Network Priority: 640Mbps |
| IP Video Input Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ |
| 720P/960H/D1/CIF |
| Output |
HDMI1 : 3840 × 2160@60fps / 3840 × 2160@30fps/ 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| HDMI3: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| HDMI4: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| Multi-screen Display |
1/4/6/8/9/13/16/25/32/36/64 |
| Compression |
H.265S/H.265+/H.265/H.264 |
| Audio |
Network Input |
64CH IPC audio input |
128CH IPC audio input |
| 2-way Audio |
RCA × 1 |
| Local Output |
RCA × 1 |
| HDMI Audio Output |
Yes |
| Compression |
G.711(U/A) |
|
Record Stream |
Dual stream recording |
|
Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ |
| Record |
720P/960H/D1/CIF |
|
Frame Rate |
25fps (PAL) / 30fps(NTSC) |
|
Mode |
Manual/timed/motion/sensor/POS/AI recording |
| Playback |
Simultaneous Playback |
Max 16 CH |
| Search |
Time slice / time / event / tag search |
| Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
| Decoding Capability |
Live/Playback |
1CH 12MP/ 4CH 5MP/9CH 720P/16CH 720P |
| Alarm |
Mode |
Manual, sensor, motion, exception, smart events |
| Input |
24 CH local alarm input; IPC alarm input supported |
| Output |
8 CH |
| Face |
Face Detection Performance (AI by IPC) |
64 CH |
128 CH |
| Face Detection Performance (AI by Device) |
4CH |
| Face Match Performance |
16CH |
| Comparison Capability |
36 pictures / second |
| Face Picture Database |
32 libraries |
| 10000 Face Pictures |
| Face Picture Search |
Search by picture is supported |
| Database Management |
Add, modify, delete and search face pictures |
| Face Picture Adding |
Add face pictures through APP, WEB and external import |
| External face picture enrollment |
Resolution：128 × 128 ~ 1920 × 1080 |
| Size：less than 70KB |
| Format : jpg, jpeg |
| Face Picture Comparison |
Support allow list, block list or stranger match alarm |
| Face Track |
Yes |
| Map of Face Track |
Reolution ：≤2560 × 1920 |
| Size：≤ 512KB |
| Format : jpg, jpeg |
|
Statistic Graph of Face Information |
Bar graph |
| Face |
Statistic Mode of Face Information |
Statistics by day, week, month, quarter as well as customized time period |
| Network |
Interface |
Rj45 10 / 100 / 1000 Mbps × 2 |
| Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, ONVIF, etc. |
| Client Connection |
Max. 20 users access |
| Mobile Device |
OS |
iOS, Andriod |
| Storage |
HDD Interface |
SATA × 16, max 10T per HDD; e-SATA × 1 |
| RAID Type |
RAID0, 1, 5, 6, 10 |
| Backup |
Local Backup |
U disk, USB mobile HDD |
| Network Backup |
Yes |

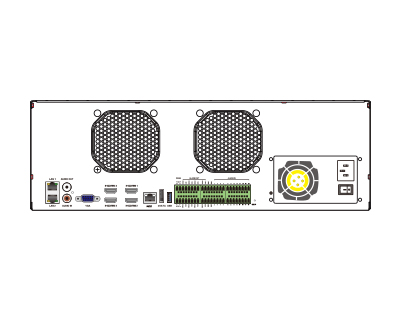

| External Interface |
USB |
USB 2.0 × 2, USB 3.0 × 1 |
| Remote Controller |
Optional |
| RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
| RS 232 |
Yes |
| Reset |
Yes |
| Others |
Power Supply |
ATX 300W |
| Consumption |
≤ 50W ( without HDD ) |

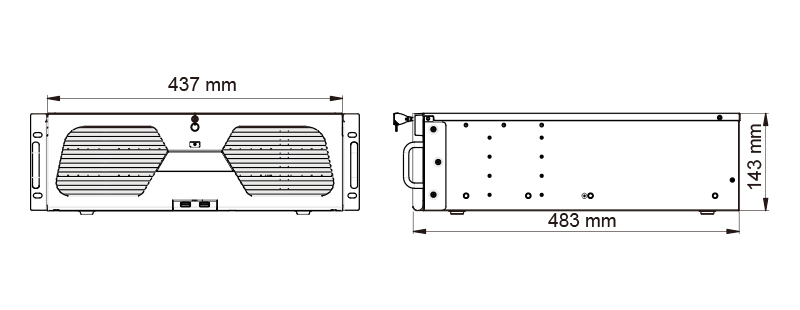

| Dimensions |
437mm×483mm×143mm |
| Working Environment |
-15 ～ 50 ℃，Humidity: 10% ～ 90% |
| Certificate |
CE, FCC |
| Environment Protection |
Directive EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC and REACH(EC1907/2006) |
