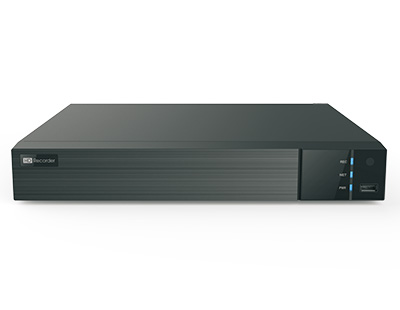

TD-3308H1-A2 8CH NVR
TD-3308H1-A2 8CH NVR
TD-3308H1-A2 supports 8 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280×1024/960P/ 720P high definition IP input, TD-3308H1-A2 supports 8 CH IPC input , simultaneous 8 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Features
- Supports 8 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows styleoperation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS /AI recording
- Playback : 8 CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Supports face detection and comparison
- Supports multiple VCA(Video ContentAnalytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Supports license plate recognition
- Supports POS information overlay on live view and playback
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remotenetwork transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Supports NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
TD-3308H1-A2 8CH NVR
| Model | TD-3308H1-A2 | |
| System | OS | Embedded Linux |
| Video | Compression | H.265S/H.265+/H.265/H.264 |
| IP Video Input | 8CH IPC input | |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Network Bandwidth | 80Mbps/80Mbps (incoming/outgoing) | |
| Output | HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 | |
| HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
| VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
| VGA and HDMI1 output the same video source | ||
| Audio | Network Input | 8 CH IPC audio input |
| 2-way Audio | RCA × 1 | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Record Stream | Dual stream recording |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Frame Rate | NTSC: 30fps; PAL: 25fps | |
| Playback | Simultaneous Playback | Max 8 CH |
| Search | Time slice / time / event / tag / smart search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P |
| Multi-Screen Display Mode | Mode | Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device |
| AI mode: HDMI2 output and 12MP video input (live view/playback)are unavailable, but 8MP video input supports | ||
| Dual Output Mode | 8CH (HDMI1) +8CH (HDMI2) | |
| AI Mode | 8CH(HDMI1) | |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 8 CH local alarm input | |
| Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Face | Face Detection Performance (AI by IPC) | 8 CH |
| Face Detection Performance (AI by Device) | 2 CH (2MP) | |
| Face Match Performance | 6 CH | |
| Comparison Capability | 18 pictures / second | |
| Face Picture Database | 32 libraries | |
| 10000 Face Pictures | ||
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Supports allow list, block list and stranger match alarm | |
| Track | Track display on a map | |
| Statistical Graph of Information | Bar graph | |
| Face | Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period |
| Video Structure Analysis | Human/Vehicle Classification | Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition | Yes | |

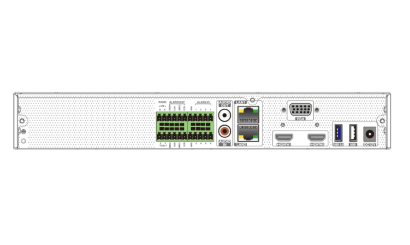

| Network | Interface | RJ 45 1000 Mbps × 2 |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF | |
| Client Connection | Max. 10 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA × 1, max 10T |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | |
| Remote Controller | Optional | |
| Others | Power Supply | DC12V/2A |
| Consumption | ≤ 20W ( without HDD ) | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |

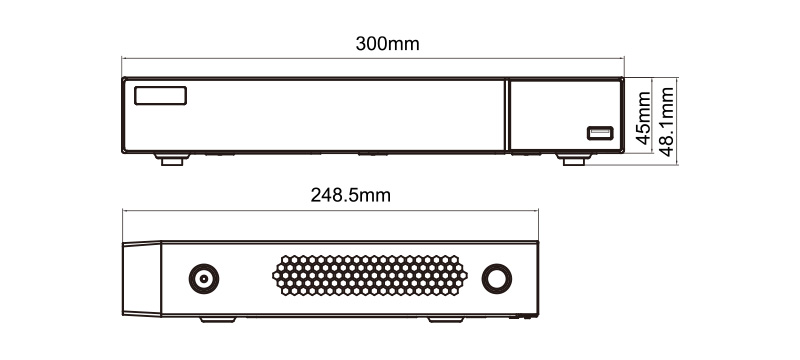

| Dimensions(mm) | 300 × 249 × 45 ( W × D × H ) | |
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
