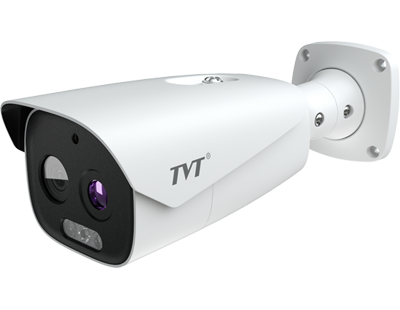

TD-5433E1-VT Thermal Network Bullet Camera
TD-5433E1-VT Thermal Network Bullet Camera
Features
- Thermal:
- Resolution: 384 × 288
- 17μm, NETD: ≤40mK(@25°C, F#=1.0)
- Temperature range: -20°C~150°C
- Dual image fusion (thermal image and optical image)
- Multi-palette: white hot, black hot, iron oxide red, etc.
- Sound and light warning, temperature exception alarm,fire detection
- Intelligent analytics: intrusion detection (human/motorvehicle classification), line crossing detection (human/motor vehicle classification)
- Optical:
- 5MP ( 2592 × 1944 ) @30 fps
- ICR auto switch, true day/night vision
- Up to 100m IR night view distance
- 3D DNR, true WDR(120dB), HLC, BLC, Smart IR,distortion image correction, ROI etc.
- Intelligent analytics: intrusion detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting(human/vehicle /non-motor vehicle classification), face detection, face capture
TD-5433E1-VT Thermal Network Bullet Camera
| Model | TD-5433E1-VT | ||
| Thermal Module | |||
| Detector Type | 17µm 384×288 ɑ-Si uncooled focal plane detector | ||
| Response Waveband | 8µm-14µm | ||
| NETD | ≤40mK(@25°C, F#=1.0) | ||
| IRIS Type | Fixed Iris | ||
| Lens | 12.3mm@F1.0 | 19mm@F1.0 | 25mm@F1.0 |
| Field of View(H×V) | 29.7°×22.5° | 19.5°×14.7° | 15°× 11.2° |
| Min. Focusing Distance | 1m | 1m | 2 m |
| DRI Distance Human (0.75m) | D: 362m(1188ft) R: 90m(295ft) I:45m(148ft) |
D: 559m(1834ft) R: 140m(459ft) I:70m(230ft) |
D: 735m(2411ft) R: 184m(604ft) I:92m(302ft) |
| DRI Distance Vehicle (2.3m) | D: 1109m(3638ft) R: 277m(909ft) I:139m(456ft) |
D: 1713m(5620ft) R: 428m(1404ft) I:214m(702ft) |
D:2255m(7398ft) R: 564m(1850ft) I:282m(925ft) |
| Color Palettes | Black hot, White hot,iron oxide red, etc. | ||
| Visible Light Module | |||
| Image Sensor | 1/ 2.7″ CMOS | ||
| Image Size | 2592 × 1944 | ||
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | ||
| Iris Type | Fixed Iris | ||
| Min. Illumination | 0.0125 lux@F2.0, AGC ON; 0 lux with IR | ||
| Lens | 8mm@F2.0 | 12mm@F2.0 | 16mm@F2.0 |
| Field of View(H×V) | 38°× 27.5° | 26.6°×19.3° | 19.8°×14.3° |
| Wide Dynamic Range | 120dB | ||
| BLC | Yes | ||
| HLC | Yes | ||
| Defog | Yes | ||
| Digital NR | 2D/3D DNR | ||
| Image | |||
| Video Compression | H.265 / H.264 / MJPEG | ||
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | ||
| Bit Rate Type | VBR/CBR | ||
| Bit Rate | 128Kbps~ 8Mbps | ||
| Resolution | Thermal : 384× 288 (the resolution of output image is 720P/DI/CIF/480 × 240) | ||
| Optical: 5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|||
| Main Stream | Optical: 5MP/4MP/2K/3MP/1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps) | ||
| Thermal : 720P/DI/CIF/ 480 × 240 (1~25fps) | |||
| Sub Stream | Optical: 720P/D1/CIF(60Hz: 1~30fps; 50Hz: 1~25fps) | ||
| Third Stream | Optical: D1/CIF/480 × 240(60Hz: 1~30fps; 50Hz: 1~25fps) | ||
| Dual Image Fusion | Yes | ||
| Temperature Overlay | Temperature can be overlaid on video stream | ||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | ||
| Audio Compression | G711A/U | ||
| ROI | 8 regions; each ROI to be configured separately | ||
| Interfaces | |||
| Network | RJ 45 | ||
| Video Output | No | ||
| Audio | 1CH 3.5mm LIN in audio input; 1CH built-in speaker | ||
| Storage | Built-in micro SD card slot; up to 256GB | ||
| Reset | Yes | ||
| RS 485 | Yes | ||
| Alarm | 4CH alarm input; 4CH alarm output | ||
| Functions | |||
| Temperature Range | -20°C~150°C (-4°F~302°F) | ||
| Temperature Accuracy | ±8°C | ||
| Temperature alarm | Over temperature alarm, low temperature alarm | ||
| Temperature Measurement | 10 rules in total (Point: up to 10; Line: up to 10; Area: up to 10) | ||
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable | ||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | ||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | ||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, QoS | ||
| Interface Protocol | ONVIF | ||
| Storage | Network remote storage; micro SD card storage | ||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception | ||
| Intelligent Analytics | Optical: intrusion detection/line crossing detection (human/motor vehicle/non- motor vehicle classification), target counting(human/motor vehicle/non-motor vehicle classification) , face detection, face capture |
||
| Thermal: fire detection, temperature exception alarm, intrusion detection/line crossing detection (human/motor vehicle classification) | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction | ||
| Sound&Light Warning | White light flashing alarm and sound alarm supported | ||
| PoE | Yes , IEEE802.3 af, class0 | ||
| IR Distance | 50 ~ 70 m | 70 ~ 100 m | 70 ~ 100 m |
| Protection Grade | IP66 | ||
| Others | |||
| Power Supply | DC12V / PoE | ||
| Power Consumption | < 9W | ||
| Operating Environment | Humidity: less than 95 % (non-condensing) -30 °C ~ 60 °C (-22°F~140°F) |
||
| Certificate | CE, FCC | ||
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | ||

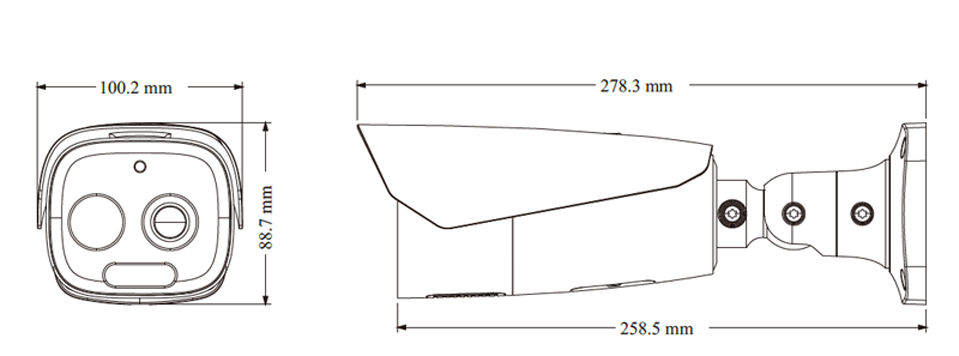

| Dimensions ( mm ) | 278.3 × 100.2 × 88.7 | ||
| Weight ( net ) | Approx. 1.18KG | ||
| Installation | Ceiling mounting; Wall mounting | ||
