TD-5525E1-VT1 Thermal Network Turret Camera
TD-5525E1-VT1 Thermal Network Turret Camera
Features
- Optical: Resolution: 256×192, 12μm，NETD: ≤50mK(@25°C, F#=1.0)
- Temperature range: -20°C~150°C
- Multi-palette: white hot, black hot, iron oxide red, etc.
- Sound and light warning, temperature exception alarm,fire detection
- Intelligent analytics: intrusion detection (human/motorvehicle classification), line crossing detection (human/motor vehicle classification)
- Supports dual image fusion
- Supports temperature overlay on video stream
- Optical:
- 5MP ( 2592 × 1944 ) @30 fps
- ICR auto switch, true day/night vision
- 20~30m IR night view distance
- 3D DNR, true WDR(120dB), HLC, BLC, Smart IR,distortion image correction, ROI etc.
- Intelligent analytics: intrusion detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting(human/vehicle /non-motor vehicle classification), face detection, face capture
TD-5525E1-VT1 Thermal Network Turret Camera
| Model | TD-5525E1-VT1 | |
| Thermal Module | ||
| Detector Type | 12µm 256×192 Vanadium oxide uncooled focal plane detector | |
| Response Waveband | 8µm-14µm | |
| NETD | ≤50mK(@25°C, F#=1.0) | |
| IRIS Type | Fixed Iris | |
| Lens | 3.2mm@F1.1 | 7mm@F1.0 |
| Field of View(H×V) | 56°×42.2° | 24.8°×18.7° |
| Min. Focusing Distance | 0.5 m | 1.1m |
| Color Palettes | Black hot, White hot,iron oxide red, etc. | |
| DRI Distance Human (0.75m) | Detection: 133m(436ft) Recognition: 33m(108ft) Identification:17m(56ft) |
Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft) |
| DRI Distance Vehicle (2.3m) | Detection: 409m (1342ft) Recognition: 102m(335ft) Identification:51m(167ft) |
Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft) |
| Visible Light Module | ||
| Image Sensor | 1/ 2.7″ CMOS | |
| Image Size | 2592 × 1944 | |
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | |
| Iris Type | Fixed Iris | |
| Min. Illumination | 0.02 lux@F1.6,AGC ON; 0 lux with IR 0.03 lux@F2.0,AGC ON; 0 lux with IR |
|
| Lens | 4mm@F1.6 | 8mm@F2.0 |
| Field of View(H×V) | 81°×56.7° | 38°×27.5° |
| Wide Dynamic Range | 120dB | |
| BLC | Yes | |
| HLC | Yes | |
| Defog | Yes | |
| Digital NR | 2D/3D DNR | |
| Image | ||
| Video Compression | H.265 / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | |
| Bit Rate Type | VBR/CBR | |
| Bit Rate | 128Kbps~ 8Mbps | |
| Resolution | Thermal : 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |
| Optical: 5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
||
| Main Stream | Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps) |
|
| Thermal : 256 × 192 (the resolution of output image is 720P/D1/CIF/480×240) (1~25fps) |
||
| Sub Stream | Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) | |
| Third Stream | Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) | |
| Dual Image Fusion | Yes | |
| Temperature Overlay | Temperature can be overlaid on video stream | |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |
| Audio Compression | G711A/U | |
| ROI | 8 regions; each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ 45 | |
| Video Output | No | |
| 1CH 3.5mm MIC/LIN in audio input; 1CH built-in MIC; 1CH built-in speaker | ||
| Audio | ||
| Storage | Built-in micro SD card slot; up to 256GB | |
| Reset | Yes | |
| RS 485 | No | |
| Alarm | 1CH alarm input; 1CH alarm output | |
| Functions | ||
| Temperature Range | -20°C~150°C (-4°F~302°F) | |
| Temperature Accuracy | ±8°C | |
| Temperature alarm | Over temperature alarm, low temperature alarm | |
| Temperature Measurement | 10 rules in total (Point: up to 10; Line:up to 10; Area:up to 10) | |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable | |
| Remote Monitoring | Web browser/NVMS2.X/Mobile APP | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS | |
| Interface Protocol | ONVIF | |
| Storage | Network remote storage; micro SD card storage | |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception | |
| Intelligent Analytics | Optical: intrusion detection/line crossing detection (human/motor vehicle/non- motor vehicle classification),
scene change detection,video exception detection, target counting(human/motor vehicle/non-motor vehicle classification) ,face detection, face capture |
|
| Thermal: fire detection, temperature exception alarm, intrusion detection/line crossing detection
(human/motor vehicle classification) AI function can be enabled simultaneously on thermal and optical channels |
||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction | |
| Sound&Light Warning | White light flashing alarm and sound alarm supported | |
| PoE | Yes , IEEE802.3 af, class0 | |
| IR Distance | 20~ 30m | |
| Protection Grade | IP66 | |
| Others | ||
| Power Supply | DC12V / PoE | |
| Power Consumption | < 9W | |
| Humidity: less than 95 % (non-condensing) | ||
| Operating Environment | -30 °C ~ 60 °C (-22°F~140°F) | |
| Certificate | CE, FCC | |
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |

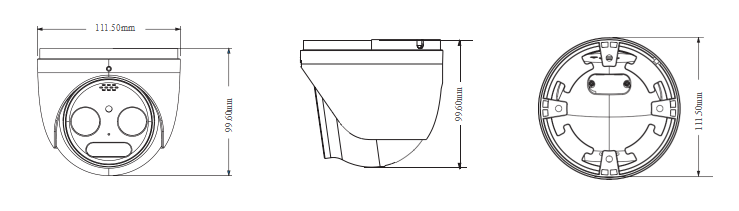

| Dimensions ( mm ) | Ø111.5 × 99.6 | |
| Weight ( net ) | Approx. 0.68KG | |
| Installation | Ceiling mounting; Wall mounting | |
