| Model |

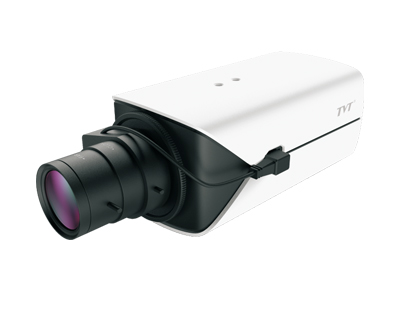

TD-9352E3A |
| Camera |
| Image Sensor |
1 / 2.7 “CMOS |
| Image Size |
2592 × 1944 |
| Electronic Shutter |
1 / 3 s ~ 1 / 10000 s |
| Iris Type |
DC Iris |
| Min. Illumination |
Color: 0.006 lux@F1.2,AGC ON B&W: 0 lux |
| Lens Mount |
CS |
| Day & Night |
ICR |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Image |
| Video Compression |
Main stream: H.265S / H.265+ / H.265 / H.264S / H.264+ / H.264 / MJPEG |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240 |
| Main Stream |
5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream |
720P/D1/CIF/480×240( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate |
64 Kbps ~ 8 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ45 |
| Video Output |
CVBS output (BNC × 1) |
| Audio |
1CH audio input; 1CH audio output; 1CH built-in MIC |
| Alarm |
2CH alarm input; 2CH alarm output |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| RS 485 |
Yes |
| Intelligent Analytics (Smart Events) |
| Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Target Counting |
Target counting by line, target counting by area, heat map |
| Exception Detection |
Scene change, video blur and video cast detection |
| Face Detection |
Face detection and face capture |
| General Intelligence |
Crowd density detection, object abandoned/missing |
| Functions |
| Remote Monitoring |
Web browser/TVT NVR/NVMS2.X/Mobile APP |
| Web Browser |
IE (plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, RTMP, HTTP POST, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction, corridor pattern |
| PoE |
Yes , IEEE802.3af |
| Others |
| Power Supply |
AC24V/DC12V/PoE |
| Power Consumption |
< 7W |
| Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

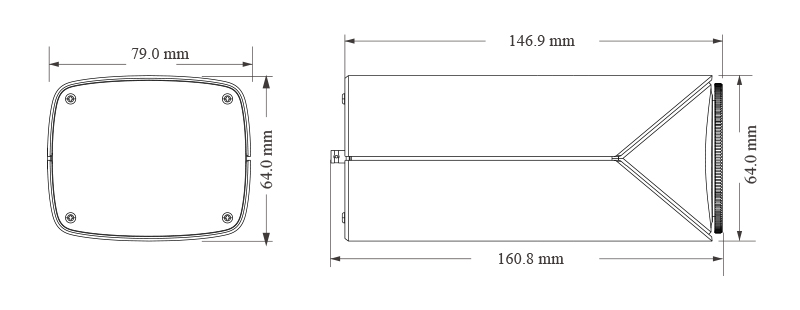

| Dimensions ( mm ) |
160.8 × 79 × 64 |
| Weight ( net ) |
Approx. 0.5KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
