| Model |

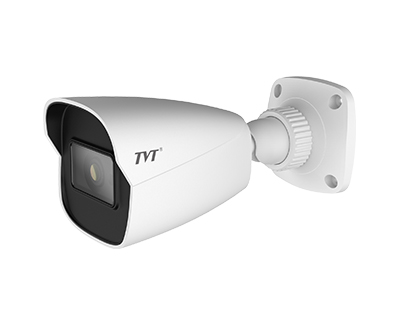

TD-9481S3B |
| Camera |
| Image Sensor |
1 / 2.8″ CMOS |
| Image Size |
3840×2160 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.02 lux @ F1.6, AGC ON; 0 lux with IR |
| Lens |
2.8 mm @F1.6, Horizontal FoV:101°; Vertical FoV:53°; Diagonal FoV:120° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Day&Night |
ICR |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| DORI Distance |
| Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
86.65m(284.28ft) |
34.66m(113.71ft) |
17.33m(56.85ft) |
8.66m(28.41ft) |
| Image |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), |
| 4MP ( 2560 × 1520), 2K(2560 × 1440 ), 3MP(2304 × 1296), |
| 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
60Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~30fps) |
| 50Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps) |
| Sub Stream |
60Hz: 720P(1~12fps)/D1/480 × 240(1~30fps) |
| 50Hz: 720P/D1/480 × 240(1~25fps) |
| Third Stream |
60Hz: D1/CIF/480 × 240 (1~30fps) |
| 50Hz: D1/CIF/480 × 240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 12 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, image mirror, image flip, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ45 |
| Video Output |
No |
| Audio |
1CH audio input |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| Functions |
| Remote Monitoring |
IE browser/ TVT NVR / NVMS / mobile APP |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection; SD card error; SD card full |
| Intelligent Analytics |
Scene change, video blur detection, video color cast detection , line crossing detection, intrusion detection |
| General function |
Watermark, IP address filtering, video mask, heartbeat, password protection, corridor pattern, etc. |
| IR Distance |
20~30m |
| Protection Grade |
IP 67 |
| PoE |
Yes (IEEE802.3af) |
| Others |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 7W |
| Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

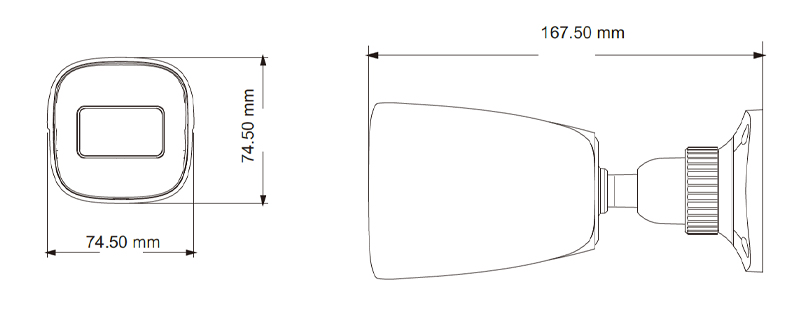

| Dimensions ( mm ) |
167.5 × 74.5 × 74.5 |
| Weight ( net ) |
Approx. 0.44KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
