| Model |

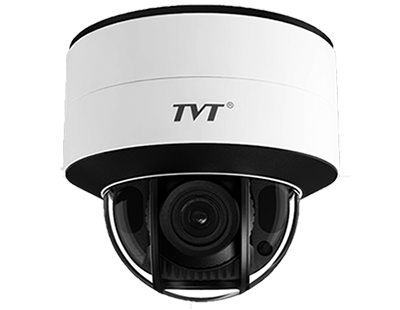

TD-9543M3 |
| Camera |
| Image Sensor |
1 / 1.79 “CMOS |
| Image Size |
2592 × 1520 |
| Electronic Shutter |
1/3 s ~ 1 / 10000 s |
| Iris Type |
P Iris |
| Min. Illumination |
0.007 lux@F1.4,AGC ON; 0 lux with IR |
| Lens |
2.8~12mm@F1.36~F2.0, motorized |
| Field of View |
H:114.2°~47.94°; V: 59.36°~27.07°; D: 141.1°~55.09° |
| Lens Mount |
Integrated |
| Day & Night |
ICR |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0 °~350° ; Tilt:0° ~70° ; Rotation: 0° ~350° |
| Image |
| Video Compression |
Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream |
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate |
64 Kbps ~ 8 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, Image Flip, Image Mirror, etc. adjustable through client software or web browser |
| ROI |
8 ROI; Each ROI to be configured separately |
| Interfaces |
| Network |
RJ 45 |
| Video Output |
CVBS output (BNC × 1, 1Vpp, 75Ω ) |
| Audio |
1CH audio input; 1CH audio output; 1CH built-in MIC |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| Alarm |
1CH alarm input; 1CH alarm output |
| RS 485 |
Yes |
| DC12V Output |
Yes (Max. output current: 200mA) |
| Intelligent Analytics (Smart Events) |
| Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Statistics |
Target counting by line/ area, heat map |
| Exception Detection |
Scene change, video blur and video cast detection |
| Face Recognition |
Face detection, face capture, face match |
| License Plate Detection |
Yes |
| Other Events |
Crowd density detection, abandoned/missingobject detection |
| DORI Distance |
| Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8~12mm(W) |
53.34m(175ft) |
21.34m(70.01ft) |
10.67m(35ft) |
5.33m(17.48ft) |
| 2.8~12mm(T) |
126.29m(414.33ft) |
50.51m(165.71ft) |
25.26m(82.87ft) |
12.63m(41.43ft) |
| Functions |
| Client Monitoring |
Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser |
IE (plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, corridor pattern |
| PoE |
Yes , IEEE802.3af |
| IR Distance |
30~ 50 m |
| Ingress Protection |
IP67&IK10 |
| Others |
| Power Supply |
AC24V/DC12V/PoE |
| Power Consumption |
< 11.5W |
| Operating Environment |
– 50 °C ~ 60 °C (-58°F~140°F); Humidity: less than 95 % (non–condensing) |
| Storage Environment |
– 50 °C ~ 65 °C (-58°F~149°F); Humidity: less than 95 % (non–condensing) |
| Dimensions ( mm ) |
187.1 × 155.3 ×143 |
| Weight ( net ) |
Approx. 1.643KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
