| Model |
TD-9581S3 |
| Camera |
| Image Sensor |
1 / 2.7 “CMOS |
| Image Size |
3840 × 2160 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.11 lux @F2.2, AGC ON; 0 lux with IR |
|
0.032 lux @ F1.2, AGC ON; 0 lux with IR |
| Lens |
2.8 mm @F2.0, Horizontal FoV:112°; Vertical FoV:79°; Diagonal FoV:118.6° |
|
3.6 mm @F2.2, Horizontal FoV: 89 Vertical FoV:57.8 Diagonal FoV:96.8° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~355°; Tilt:0°~67°; Rotation: 0°~355° |
| Image |
| Video Compression |
H.265 / H.264 |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
8MP ( 3840 × 2160 ), 6MP ( 3072× 2048 ), 5MP ( 2592 × 1944 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
8MP/6MP/5MP/4MP/2MP(1~20fps) |
| Sub Stream |
720P/D1/CIF (1~20fps) |
| Third Stream |
D1/CIF/480×240(1~20fps) |
| Bit Rate |
64 Kbps ~ 8 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ45 |
| Video Output |
No |
| Audio |
1CH built-in MIC; 1CH audio input |
| Storage |
Built-in micro SD card slot; up to 128GB |
| Hardware Reset |
Yes |
| Functions |
| Remote Monitoring |
Web browsing, CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, SD card error, SD card full |
| Intelligent Analytics |
Region intrusion detection, scene change detection and line crossing detection |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE |
Yes |
| IR Distance |
20 ~ 30 m |
| Ingress Protection |
IP 67 & IK10 |
| Others |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 7W |
| Operating Environment |
-30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing) |

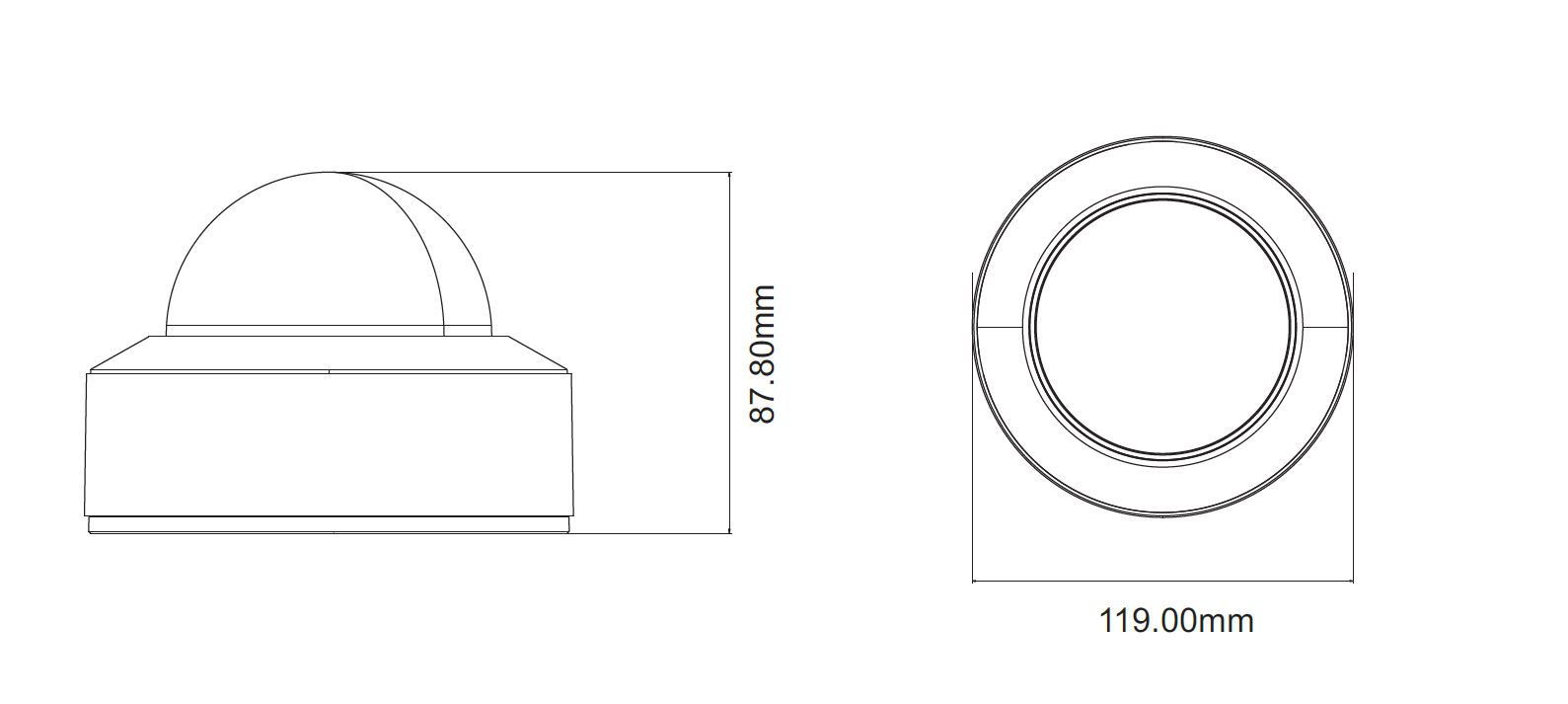

| Dimensions ( mm ) |
Φ 119 × 87.8 |
| Weight ( net ) |
Approx. 0.63KG |
| Installation |
Ceiling mounting ( Wall mounting available with the junction box and bracket ) |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
